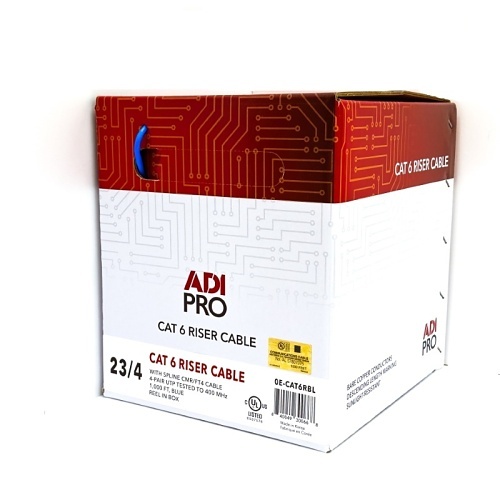

ADI PRO 0E-CAT6RBL CAT6 Riser Cable, 23/4 Solid BC, Unshielded, UTP, CMR/FT4, 1000' (304.8m) Reel in Box, Blue
0E-CAT6RBL|0E-CAT6RBL
ADI PRO 0E-CAT6RBL CAT6 Riser Cable, 23/4 Solid BC, Unshielded, UTP, CMR/FT4, 1000' (304.8m) Reel in Box, Blue
0E-CAT6RBL|0E-CAT6RBL
ADI PRO
ADI PRO 0E-CAT6RBL CAT6 Riser Cable, 23/4 Solid BC, Unshielded, UTP, CMR/FT4, 1000' (304.8m) Reel in Box, Blue
0E-CAT6RBL | 0E-CAT6RBL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
ADI PRO Cat 6 Riser Cable is UL certified and features 23 AWG with 4 solid bare annealed copper conductor-pairs. Our wire is fully tested to exceed industry standards to satisfy the need for present and future networks in the market. Also available in other colors.
Main Features
- ANSI/TIA-568.2-D STANDARDS/ETL tested to 500 MHz
- 1000' Reel Box, 100% Copper
- 23 AWG/4 Pair UTP Tested
- HDPE (High Density Polyethylene)
- UL/cUL ETL Certifications
General Information
Name: ADI PRO 0E-CAT6RBL CAT6 Riser Cable, 23/4 Solid BC, Unshielded, UTP, CMR/FT4, 1000' (304.8m) Reel in Box, Blue
Category: ADI PRO, Data Comm & Networking, Media Converters & Transceivers, Media Converters, ADI Exclusive
UPC Code: 8119140248738
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number 0E-CAT6RBL Brand Name ADI PRO Manufacturer ADI PRO Manufacturer Part Number 0E-CAT6RBL Packaged Quantity 1 Product Model 0E-CAT6RBL Product Name 0E-CAT6RBL 1000ft CAT 6 23/4 Cable Riser Rated, Reel Box, Blue Product Type Network Cable, Riser Cable Weight 27.60 lb
American Wire Gauge 23AWG Cable Rating Riser Device Supported Network Device Jacket Type Riser Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
Data Transfer Rate 1.2 Gbit/s
Cable Length 1000' Color Blue Material Copper Package Type Reel in Box
Limited Warranty 30-Year
Country of Origin KR Environmental Certification EU RoHS, ISO 14001, RoHS Environmentally Friendly Yes Features Attenuation Crosstalk Ratio Far-end (ACR-F), Bendable, Minimized Near-End Crosstalk (NEXT), PoE, Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT)
