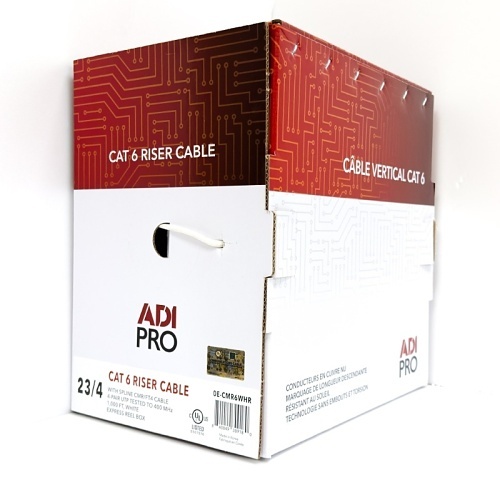

ADI PRO 0E-CMR6WHR CAT6 23/4 Solid BC Cable, Unshielded UTP, Riser CMR, FT4, 1000' (304.8m) Express Box, White
0E-CMR6WHR|0E-CMR6WHR
ADI PRO 0E-CMR6WHR CAT6 23/4 Solid BC Cable, Unshielded UTP, Riser CMR, FT4, 1000' (304.8m) Express Box, White
0E-CMR6WHR|0E-CMR6WHR
ADI PRO
ADI PRO 0E-CMR6WHR CAT6 23/4 Solid BC Cable, Unshielded UTP, Riser CMR, FT4, 1000' (304.8m) Express Box, White
0E-CMR6WHR | 0E-CMR6WHR
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
ADI PRO Cat 6 Riser Cable is UL certified and features 23 AWG with 4 solid bare annealed copper conductor-pairs. Our wire is fully tested to exceed industry standards to satisfy the need for present and future networks in the market. Also available in other colors.
Main Features
- ANSI/TIA-568.2-D STANDARDS/ETL tested to 500 MHz
- 1000' Express Box, 100% Copper
- 23 AWG/4 Pair UTP Tested
- Solid Bare Copper Conductors
- UL certified
- Save time during your installs with our express box featuring a twist and tangle free, figure-eight configuration
General Information
Name: ADI PRO 0E-CMR6WHR CAT6 23/4 Solid BC Cable, Unshielded UTP, Riser CMR, FT4, 1000' (304.8m) Express Box, White
Category: ADI PRO, Wire & Cable, Network Cables, Category 6 Network Cables, ADI Exclusive
UPC Code: 840049309180
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number 0E-CMR6WHR Brand Name ADI PRO Manufacturer ADI Manufacturer Part Number 0E-CMR6WHR Product Name Cat 6 Riser Cable Product Type Network Cable
American Wire Gauge 23AWG Cable Rating Riser Cable Type Category 6 Device Supported Network Device Jacket Type Riser Shielding No Solid or Stranded Solid
Data Transfer Rate 1.2 Gbit/s
Cable Length 1000' Color White Insulation Material HDPE Jacket Material PVC Package Type Express Box
Country of Origin KR Environmental Certification EU RoHS, OHSAS, RoHS Environmentally Friendly Yes Features Attenuation Crosstalk Ratio Far-end (ACR-F), Bendable, Minimized Near-End Crosstalk (NEXT), PoE, Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT), Tangle-free, Unshielded Twisted Pair (UTP)
