Image of 1B-343511001
Bose Professional

Bose Professional 343511-0010 Amplifier, Kit, Accessory, Powermatch, 8-Channel

PM8500N|1B-343511001
Bose Professional

Bose Professional 343511-0010 Amplifier, Kit, Accessory, Powermatch, 8-Channel

PM8500N|1B-343511001

Sign In for Dealer Pricing

Become an ADI Customer

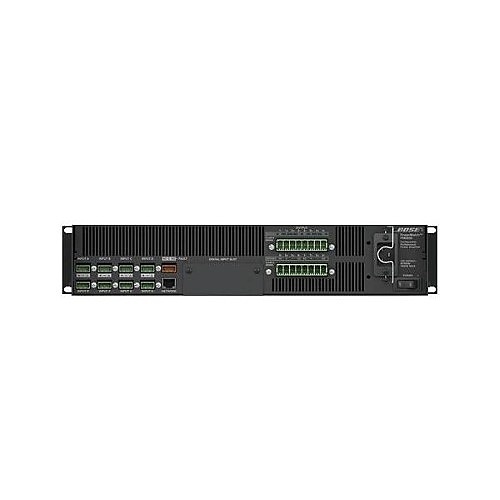

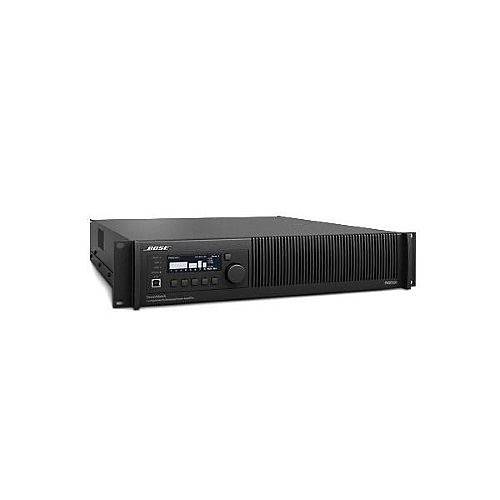

Image of 1B-343511001
Bose Professional

Bose Professional 343511-0010 Amplifier, Kit, Accessory, Powermatch, 8-Channel

PM8500N | 1B-343511001

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Bose Professional PowerMatch PM8500N configurable professional power amplifier provides concert-quality sound with a high level of scalability and configurability for fixed installation sound reinforcement systems. Ethernet-based networking enables configuration, control and monitoring, and an expansion slot supports input from optional digital audio accessory cards. PowerMatch amplifiers utilize numerous Bose Professional technologies to deliver an unprecedented combination of performance, efficiency and ease of installation—all in a reliable, proprietary design.

Main Features

  • Qua dBridge Technology – Allows each 4-channel loudspeaker block to be configured as Mono, V-Bridge, I-Share or Quad modes, allowing the total available power of the Alifier block to be allocated to one or more output channels. The Alifier is capable of driving both low impedance and 70/100V loudspeaker loads directly.
  • Bose Professional ControlSpace Designer software – PowerMatch Alifiers can be fully configured using ControlSpace Designer software via the front panel USB connection, or the rear panel Ethernet connection. Using ControlSpace Designer software you can access additional features including: Parametric EQ stages, load sweep of each output channel and auto standby
  • Auto-Standby/Auto-Wake function – When enabled, this function automatically enters/exits Standby Mode, allowing the system to consume less power.
  • Dual voltage and current feedback loop – Proprietary design combines Class-D efficiency with a unique current and voltage feedback loop circuit that continuously monitors and controls both the current and voltage delivered to the loudspeaker load. Independent of power level and load impedance, the amplifier consistently delivers the widest possible dynamic range, frequency response and lowest possible distortion.
  • PeakBank power supply – Regenerative 4-quadrant power supply enables higher power density while allowing the re-use of energy from reactive loads that is normally wasted in conventional Class-D designs. This highly efficient amplifier design delivers sustainable and repeatable low frequency response.
  • Fast-tracking power factor correction (PFC) – Efficiently manages the current drawn from the AC mains, allowing the amplifier to drive loudspeakers to maximum output longer without power fluctuation. PFC provides superior transient response and functions at peak burst power much longer than conventional Class-D amplifier designs to satisfy the requirements of even the most demanding program material.

General Information

Name: Bose Professional 343511-0010 Amplifier, Kit, Accessory, Powermatch, 8-Channel
Category: Bose Professional, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 716817565860
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
