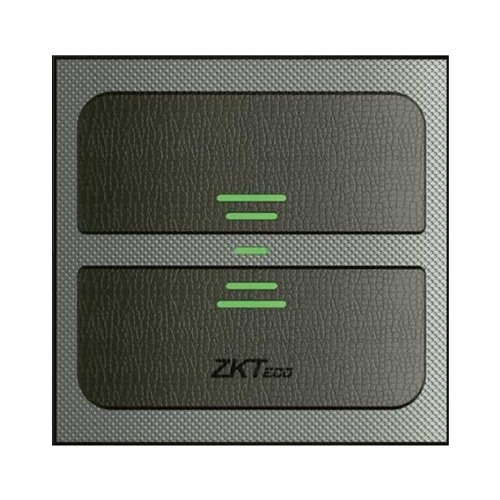

Image of 26-KR501M
ZKTeco

ZKTeco KR501M Reader 13.56MHz MIFARE ID Card Reader

KR501M|26-KR501M
ZKTeco

ZKTeco KR501M Reader 13.56MHz MIFARE ID Card Reader

KR501M|26-KR501M

Sign In for Dealer Pricing

Become an ADI Customer
Image of 26-KR501M
ZKTeco

ZKTeco KR501M Reader 13.56MHz MIFARE ID Card Reader

KR501M | 26-KR501M

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The KR Series is the main accessories line of external Wiegand readers for all ZKTeco access control devices. With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up to 10 cm in the E series case and up to 5 cm in the M series case. The fact that this series is waterproof, and the operating temperatures can range from -20 degree to +65 degree, it is the ideal solution for outdoor installation. Also they can be connected with ZKTeco C3 controllers.

Main Features

  • Elegant and robust design
  • Easy to connect and install
  • Controls one door from both sides
  • LED lights for access indication
  • Proximity reading range up to 5 cm
  • Waterproof for outdoor use
  • Operating temperature: -20°C to +65°C
  • Compatible with ZKTeco C3 controllers
  • Operates from -20°C to +65°C
  • Connects with ZKTeco C3 controllers

General Information

Name: ZKTeco KR501M Reader 13.56MHz MIFARE ID Card Reader
Category: ZKTeco, Access Control, Keypads & Readers, Smart Readers
UPC Code:
Country of Origin: CN. Country of origin is subject to change.
