Product Overview

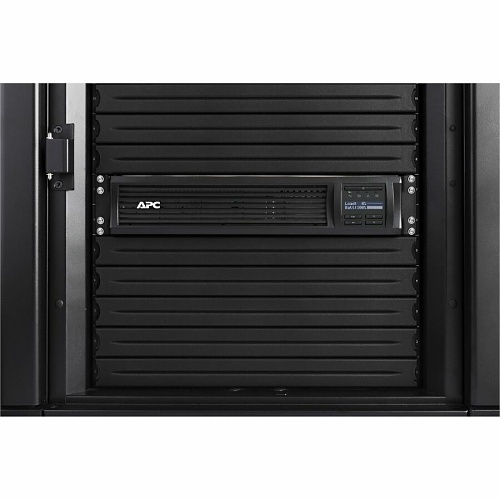

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, AVR, LCD
Main Features
- Cold-start capable - Provides temporary battery powerWhen the utility power is out.
- Energy meter - Provides actual kiloW hours of usage for energy conscious users.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency - Reduces utility costs, generates less heat.
- Intelligent Card Slot - Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
- Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartConnect - Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
General Information
Name: APC SMT1500RM2UC Line Interactive Smart-UPS with SmartConnect Port/SmartSlot, 1500VA/1000W, NEMA 5-15R Outlets
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code: 731304322801
Country of Origin: Philippines. Country of origin is subject to change.
Specifications
ADI Part Number 2G-1500RM2UC Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SMT1500RM2UC Packaged Quantity 1 Product Line Smart-UPS Product Model SMT1500RM2UC Product Name Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect Product Type Line-interactive UPS Weight 58.42 lb
Number of Batteries 1 Number of Battery & Surge Outlets 6 Output Voltage 110V AC, 120V AC, 127V AC Receptacle Detail 6 x NEMA 5-15R Receptacle Type NEMA 5-15P Transfer Time 10 ms
Battery Chemistry Lead Acid Battery Life 6 Year Battery Recharge Time 3-Hour
Status Indicators LCD Status
Maximum Operating Elevation 10000 ft Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 50000 ft Operating Humidity 0% - 95% Thermal Dissipation 65.94 W
Network (RJ-45) Yes Serial Port Yes
Alarm Configurable Delay, Low Battery Network Management SmartSlot
Color Black Depth 18.8" Form Factor Rack Mount Height 3.4" Rack Height 2U Width 17"
Input Frequency 60 Hz Input Voltage 120V AC Output Frequency 60 Hz Plug/Connector Type NEMA 5-15P Surge Energy Rating 680 J Waveform Type Sine Wave
Software Included Powerchute Serial Edition
Additional Warranty Information 3 years repair or replace (excluding battery) and 2 years for battery Limited Warranty 3-Year
Country of Origin PH Environmental Certification ENERGY STAR 2.0, REACH, RoHS Environmentally Friendly Yes Package Contents - Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
- Installation guide
- Rack mounting support rails
- USB cable
