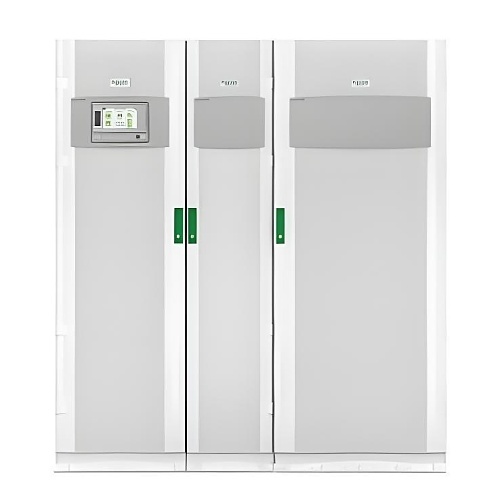

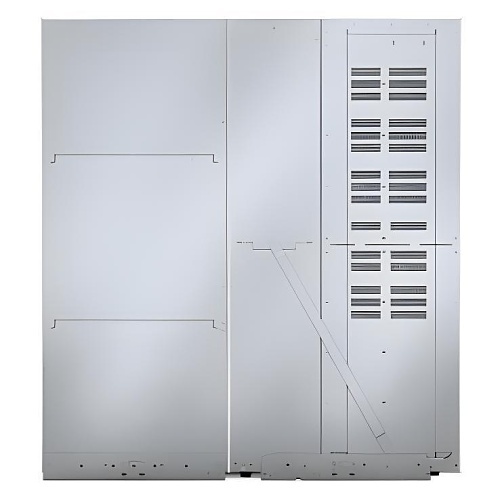

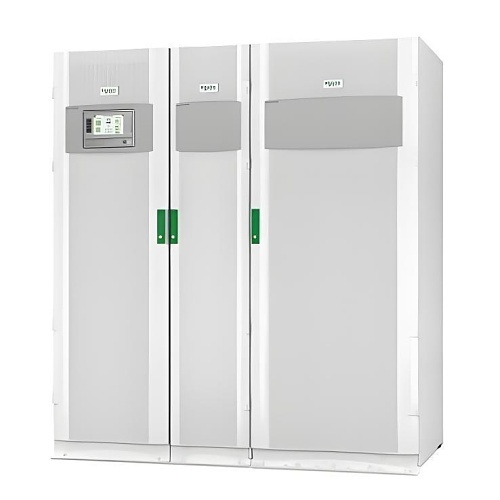

APC GVMS180KGF65S Galaxy VM 180kVA UPS, 480-208V, Single Phase
GVMS180KGF65S|2G-180KGF65S
APC GVMS180KGF65S Galaxy VM 180kVA UPS, 480-208V, Single Phase
GVMS180KGF65S|2G-180KGF65S
APC by Schneider Electric
APC GVMS180KGF65S Galaxy VM 180kVA UPS, 480-208V, Single Phase
GVMS180KGF65S | 2G-180KGF65S
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
A highly compact, energy efficient 3-phase UPS with an integrated 480-208 volt transformer for data center, facility and industrial applications.
Main Features
- Compact 3-phase UPS design
- Energy efficient operation
- Integrated 480-208V transformer
- Ideal for data centers
- Suitable for facility use
- Supports industrial applications
- 180 kVA power capacity
General Information
Name: APC GVMS180KGF65S Galaxy VM 180kVA UPS, 480-208V, Single Phase
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-180KGF65S Brand Name APC by Schneider Electric Manufacturer Part Number GVMS180KGF65S Packaged Quantity 1 Product Line Galaxy VM Product Name Galaxy VM 180 kVA UPS Single 480-208 V Product Type Industrail UPS Weight 4135lb
Output Voltage 208V Overload Protection Yes Phase Three Phase
Maximum Operating Humidity 0.95
Maximum Operating Elevation 3333' Maximum Operating Temperature 104?F Maximum Storage Temperature 5°F Minimum Storage Temperature 104°F Thermal Dissipation 3600W
Application/Usage Data Center, Industrial Color White Depth 33.6" Height 77.6" Package Type Pack Width 70.9"
Input Voltage 480V Output Frequency 50Hz, 60Hz Plug/Connector Type Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) Waveform Type Sine Wave
Limited Warranty 1-Year
Environmental Certification FCC, Green Premium, RoHS, UL Environmentally Friendly Yes
