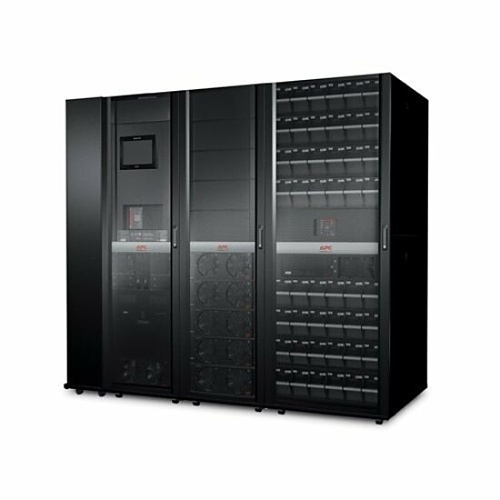

APC SY125K250DL-PD Symmetra PX 125kW Scalable to 250kW
SY125K250DL-PD|2G-5K250DLPD
APC SY125K250DL-PD Symmetra PX 125kW Scalable to 250kW
SY125K250DL-PD|2G-5K250DLPD
APC by Schneider Electric
APC SY125K250DL-PD Symmetra PX 125kW Scalable to 250kW
SY125K250DL-PD | 2G-5K250DLPD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Scalable, high-efficiency 3-phase UPS with integrated maintenance bypass & sub-feed distribution. This system scales as your data center grows up to 125kW/125kVA. To support additional growth, this UPS can be easily expanded to scale to 250kW and supports up to four systems in parallel. Suitable for medium & large data center applications.
Main Features
- Scalable 3-phase UPS up to 125kW/125kVA
- High-efficiency power management
- Integrated maintenance bypass
- Sub-feed distribution included
- Expandable to 250kW
- Supports up to 4 systems in parallel
- Ideal for medium & large data centers
General Information
Name: APC SY125K250DL-PD Symmetra PX 125kW Scalable to 250kW
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-5K250DLPD Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SY125K250DL-PD Product Line Symmetra Product Name Symmetra 125KV Dual Conversion On-Line UPS Product Series PX Product Type Double Conversion Online UPS Weight 6223lb
Backup/Run Time (Full Load) 6.5-Minute Backup/Run Time (Half Load) 21-Minute Output Voltage 480V AC Phase Three Phase Receptacle Detail 1 x Hard Wire 4-wire, 1 x Hard Wire 5-wire Receptacle Type Hard Wire 4-wire, Hard Wire 5-wire Transfer Time 2-Millisecond
Battery Characteristics VRLA Battery Recharge Time 8-Hour
Status Indicators Yes
Maximum Operating Elevation 3333' Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 5000' Thermal Dissipation 4534.69W
Application/Usage Critical Environment, Data Center Color Black Depth 42" Height 78.4" Width 92.5"
Input Frequency 60Hz Input Voltage 400V, 480V Output Frequency 60Hz Plug/Connector Type Hard Wire 4-wire, Hard Wire 5-wire
Limited Warranty 1-Year
Environmental Certification FCC, Green Premium, UL Environmentally Friendly Yes
