APC AP4422A Netshelter Rack Automatic Transfer Switch, 16A, 230V
AP4422A|2G-AP4422A
APC AP4422A Netshelter Rack Automatic Transfer Switch, 16A, 230V
AP4422A|2G-AP4422A
APC by Schneider Electric
APC AP4422A Netshelter Rack Automatic Transfer Switch, 16A, 230V
AP4422A | 2G-AP4422A
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

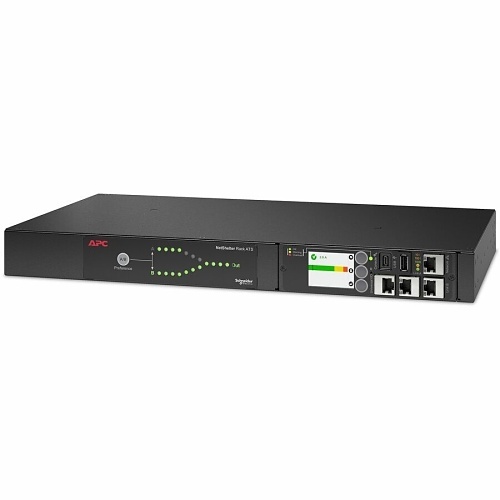

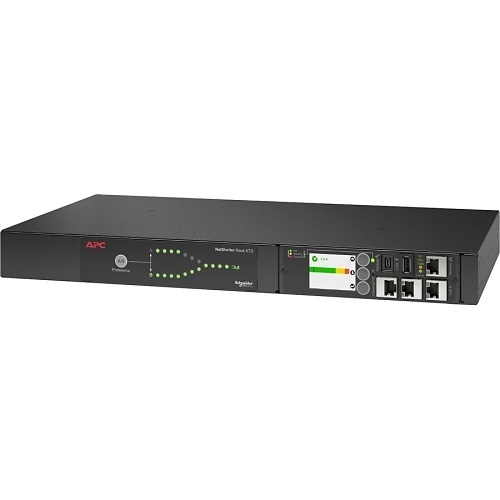

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4422A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4422A is single phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3840VA load capacity. It comes with 2 IEC 309 inlet and 1 IEC 309 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Main Features
- Seamless switching with transfer time
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- 1-Year Secure Network Management Card subscription included
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
General Information
Name: APC AP4422A Netshelter Rack Automatic Transfer Switch, 16A, 230V
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-AP4422A Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AP4422A Product Line NetShelter Product Name NetShelter Automatic Transfer Switch Product Type Automatic Transfer Switch Weight 9.28lb
Output Voltage 230V
Receptacles 1 x IEC 60309 16A 2P+E
Color Black Depth 9.29" Form Factor Rack Mount Height 1.73" Rack Height 1U Width 17.01"
Input Voltage 230V Plug/Connector Type IEC 60309 16A 2P+E
Limited Warranty 2-Year
Environmental Certification California Proposition 65, CE, EMC Directive 2004/108/EC, LVD directive 2006/95/EC, WEEE Environmentally Friendly Yes Package Contents - NetShelter Automatic Transfer Switch
- Mounting Hardware
- Rack Mounting Brackets
- Serial Configuration Cable
