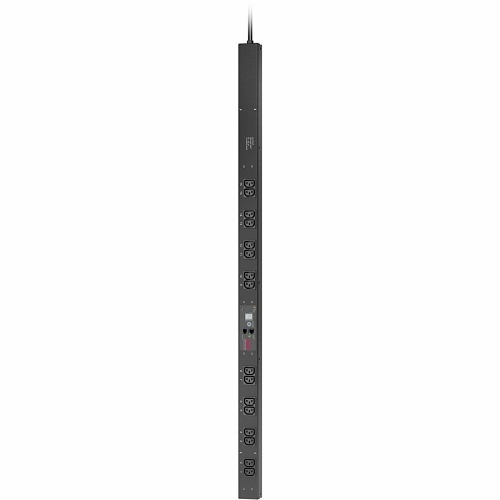

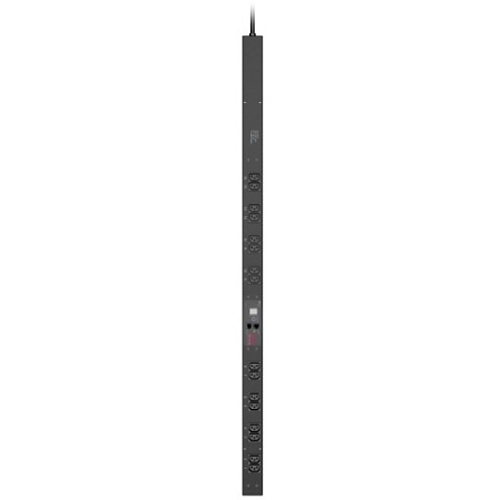

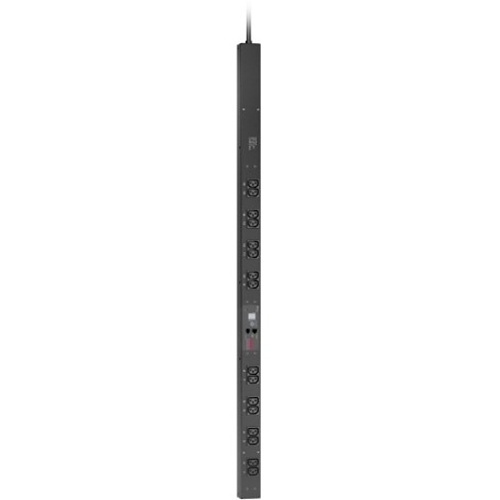

APC AP7850B Rack PDU, Metered, Zero U, 10A, 230V, (16) C13
APC AP7850B Rack PDU, Metered, Zero U, 10A, 230V, (16) C13
APC AP7850B Rack PDU, Metered, Zero U, 10A, 230V, (16) C13
AP7850B | 2G-AP7850B
Please sign in to view pricing and availability and to add to cart.
Product Overview
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.
Main Features
- Toolless Rack Mounting Capabilities-Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure
- Vertical Mounting Capabilities-Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack Units that mount vertically are optimized to fit in a NetShelter enclosures
- IEC 60320 C14 plug/connector type for efficient connectivity and feasible power output
- 200 V input voltage for maximum feasibility and added productivity
- 230 V AC output voltage for optimal performance with maximum feasibility
General Information
Specifications
ADI Part Number 2G-AP7850B Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AP7850B Product Line NetShelter Product Name Rack PDU, Metered, Zero U, 10A, 230V, (16) C13 Product Series Metered Product Type PDU Weight 6.77lb
Output Voltage 230V PDU Type Metered
Depth 1.73" Height 49.02" Rack Height 0U Width 2.20"
Input Current 0.41666666666666669 Input Voltage 200V, 208V, 230V Plug/Connector Type IEC 60320 C14
Mount Type Rack Mount
Limited Warranty 2-Year
Environmental Certification California Proposition 65, CE, GOST, VDE Environmentally Friendly Yes Package Contents - Rack PDU, Metered, Zero U, 10A, 230V, (16) C13
- Cord retention bracket(s)
- Installation guide
- Rack mounting brackets
- Toolless mounting kit
