Product Overview
UPS Network Management Card 2 w/ Environmental Monitoring, Out of Band Access and Modbus
Main Features
- Modbus RS-485 and Modbus TCP support-Enables remote monitoring and interfaces with StruxureWare™ Data Center Expert, building management systems, or other third-party systems
- Multiple user access-Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users

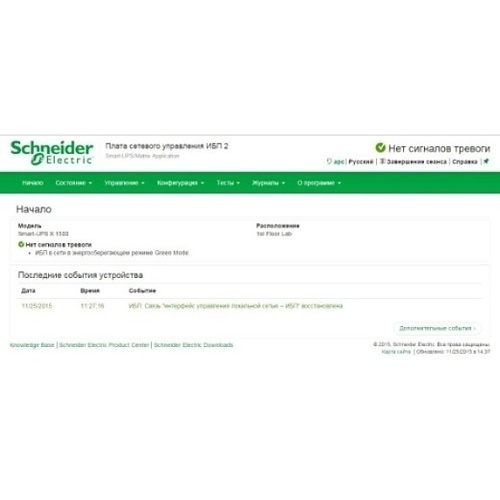

- Multiple language support-Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
- UPS Firmware Update-User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only)
- Smart Battery Management Support-Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only)
- Out of Band UPS Management Support-Supports dial-out notifications and dial-in access via a modem to the console interface
- BACnet/IP Support-Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS and Symmetra only)
- Command line interface-Offers simultaneous remote management access through Telnet and SSH
- Standard UPS RFC 1628 MIB Compatible-Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB
- Device Encryption-Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
General Information
Name: APC AP9635 Electric UPS Network Management Card with Environmental Monitoring
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS Management Adapters
UPC Code: 731304267768
Country of Origin: IN. Country of origin is subject to change.
Specifications
ADI Part Number 2G-AP9635 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AP9635 Product Name UPS Network Management Card 2 w/ Environmental Monitoring Product Type UPS Management Adapter Weight 4.96oz
Protocols HTTPs, IPv6, RADIUS, SNMP, SNMP v1, SNMPv2, SNMPv3, SSH, SSHv2, SSL, Syslog, TCP/IP
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1
Ethernet Technology Ethernet
Depth 4.3" Height 1.5" Width 4.8"
Limited Warranty 2-Year
Certifications & Standards AS/NZS 3548 (C-Tick) Class A, GOST, VCCI Class A Environmental Certification RoHS Environmentally Friendly Yes Package Contents - UPS Network Management Card 2 w/ Environmental Monitoring
- CD with software
- Temperature sensor
- User manual
