APC APDU9941 Rack PDU, 9000 Switched, ZeroU, 30A, 200V and 208V, 21 C13 and C15, C19 and C21 Sockets
APC APDU9941 Rack PDU, 9000 Switched, ZeroU, 30A, 200V and 208V, 21 C13 and C15, C19 and C21 Sockets
APC APDU9941 Rack PDU, 9000 Switched, ZeroU, 30A, 200V and 208V, 21 C13 and C15, C19 and C21 Sockets
APDU9941 | 2G-APDU9941
Please sign in to view pricing and availability and to add to cart.
Product Overview
NetShelter Switched Rack PDUs
With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.
Switched Rack PDUs enable advanced, customizable power control and active monitoring for datacenter and edge environments. Remote outlet level control allows on/off power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets to reduce downtime. Outlet power sequencing and grouping allow users to specify the order of device power up or down to avoid circuit overload due to inrush current and/or load shed to conserve energy. Power metering provides real-time remote monitoring of connected loads with alarms to warn of potential overloads. Users can access, configure, and control Switched Rack PDUs through secure Web or SNMP and are fully compatible with EcoStruxure IT. New 9000 series Switched Rack PDUs include Gigabit ethernet, 1% Metering accuracy, 60C Operating temperature (select models) with new C13/C15 and C19/C21 hybrid outlets, ability to share 1 network port across 32 PDUs, and enhanced cybersecurity.
Main Features
- Gigabit Ethernet Connectivity-9000 series PDUs provide Gigabit Ethernet to enhance and standardize network connectivity across all assets in the data center All other models provide 10/100 ethernet connectivity
- High temperature performance,secure power cord,precise metering,gigabit ethernet port and enhanced digital security
- Individual outlet control,power sequencing,outlet grouping
General Information
Specifications
ADI Part Number 2G-APDU9941 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number APDU9941 Product Name NetShelter 9000 24-Outlet PDU Product Series 9000 Product Type PDU Sector Data Comm & Networking Weight 18.74lb
Output Voltage 200V, 208V PDU Type Switched Receptacle Detail 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21 Receptacle Type IEC 60320 C13/C15, IEC 60320 C19/C21
Network (RJ-45) Yes
Depth 1.81" Form Factor Tower Height 72.01" Mounting Orientation Vertical Rack Height 0U Width 2.17"

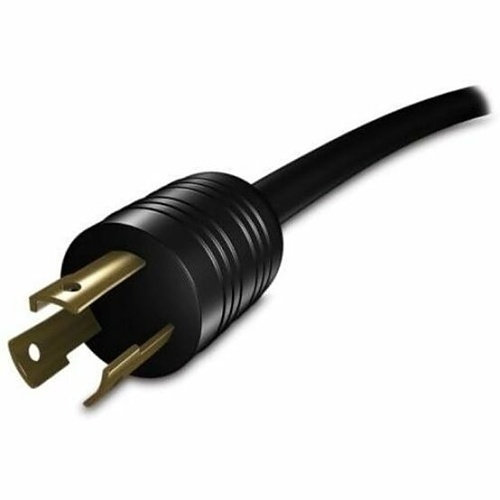

Input Current 30A Input Voltage 200V, 208V Plug/Connector Type NEMA L6-30P
Mount Type Rack Mount Protection Type Overload Protection
Limited Warranty 3-Year
Environmental Certification cUL Listed, FCC Part 15 Class A, PSE, WEEE Environmentally Friendly Yes Package Contents - NetShelter 9000 24-Outlet PDU
- Installation guide
- Rack mounting brackets
- Safety guide
