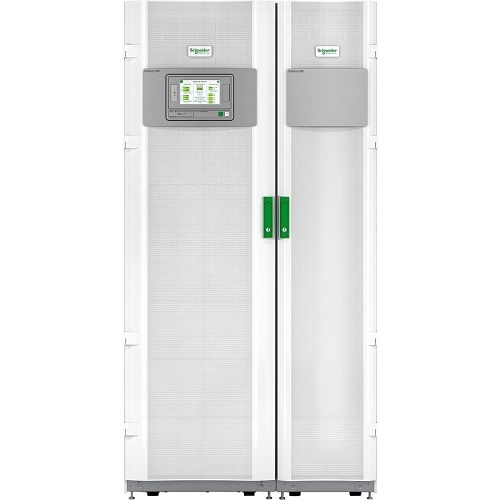

APC GVMSB160KG65S Galaxy VM 160 KVA UPS, 480V, 65KAIC
GVMSB160KG65S|2G-B160G65
APC GVMSB160KG65S Galaxy VM 160 KVA UPS, 480V, 65KAIC
GVMSB160KG65S|2G-B160G65
APC by Schneider Electric
APC GVMSB160KG65S Galaxy VM 160 KVA UPS, 480V, 65KAIC
GVMSB160KG65S | 2G-B160G65
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Galaxy VM Lithium-Ion battery solutions. Galaxy VM is a key component in the comprehensive Schneider Electric energy management solution for data center and industrial applications. Galaxy VM deploys state of the art technology to lower energy cost through very high efficiency ratings and the newly innovative ECOnversion mode. Galaxy VM seamlessly links to your electrical network using state of the art electrical performances like very wide input voltage range, high overload and short circuit capacity, and integrated back feed protection, providing excellent power quality. The highly compact Galaxy VM also links in with your facility monitoring systems and smart grid requirements and offers both traditional and modular energy storage flexibility that allows tailoring of the solution to specific needs. Galaxy VM features top and bottom cable entry without the need for an additional side cabinet, full front service access, back to the wall installation, and included start up service, making it one of the easiest UPSs in its class to deploy, install and maintain.
Main Features
- 160 kVA UPS for robust power management
- Lithium-Ion battery for efficient energy storage
- High efficiency with ECOnversion mode
- Wide input voltage range for flexibility
- High overload and short circuit capacity
- Integrated back feed protection
- Compact design with top and bottom cable entry
- Full front service access for easy maintenance
- Back to the wall installation saves space
- Includes start-up service for hassle-free setup
General Information
Name: APC GVMSB160KG65S Galaxy VM 160 KVA UPS, 480V, 65KAIC
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-B160G65 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number GVMSB160KG65S Packaged Quantity 1-Pack Product Line Galaxy VM Product Name Galaxy VM 160 kVA UPS Single 480-480 V, 65kAIC, Start Up 5x8 Product Type Double Conversion Online UPS Weight 1494.80 lb
Output Voltage 480V AC Phase Three Phase Receptacle Detail 1 x Hard Wire 4-wire (3PH + G), 1 x Hard Wire 5-wire (3PH + N + G) Receptacle Type Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
Energy Star Yes
Maximum Operating Elevation 3333' Maximum Operating Temperature 104?F Maximum Storage Elevation 49212' Maximum Storage Temperature 104?F Minimum Storage Temperature 5?F Thermal Dissipation 6201.3W
EPO Port Yes
Application/Usage Data Center, Industrial Color White Depth 33.6" Height 77.6" Width 39.5"
Input Frequency 40 Hz|70 Hz Input Voltage 480V AC Output Frequency 50 Hz|60 Hz Waveform Type Sine Wave
Limited Warranty 1-Year
Environmental Certification FCC, UL Environmentally Friendly Yes Package Contents - Galaxy VM 160 kVA UPS Single 480-480 V, 65kAIC, Start up 5x8
- Dust Filter
- Installation Guide
- Integrated Network Management
- Seismic Compliance
- Start-Up Service
- Top and Bottom Cable Entry
