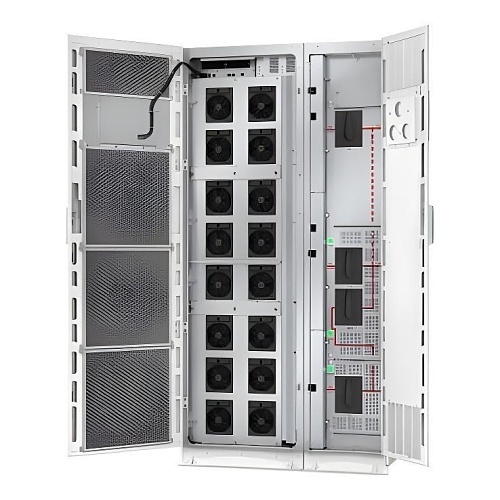

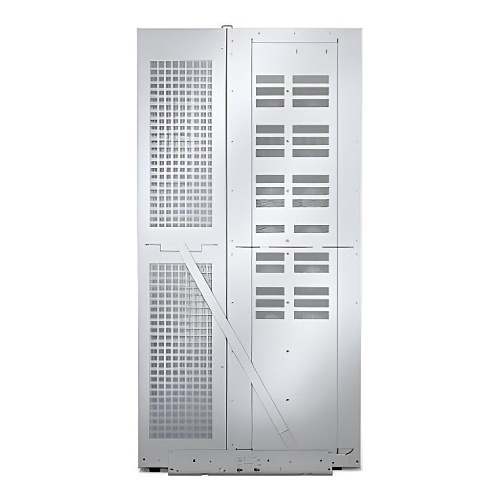

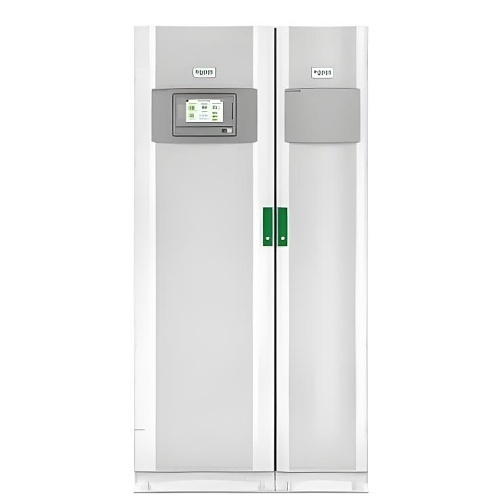

APC GVMSB200KHS Galaxy VM 200 KVA UPS Single, 400-400V
GVMSB200KHS|2G-MSB200KHS
APC GVMSB200KHS Galaxy VM 200 KVA UPS Single, 400-400V
GVMSB200KHS|2G-MSB200KHS
APC by Schneider Electric
APC GVMSB200KHS Galaxy VM 200 KVA UPS Single, 400-400V
GVMSB200KHS | 2G-MSB200KHS
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Highly compact, energy efficient 3-phase UPS for data center, facility and industrial applications. to be used with external battery cabinets.
Main Features
- 200 kVA power capacity
- Compact and energy-efficient design
- 3-phase UPS for data centers
- Suitable for facility and industrial use
- Compatible with external battery cabinets
General Information
Name: APC GVMSB200KHS Galaxy VM 200 KVA UPS Single, 400-400V
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-MSB200KHS Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number GVMSB200KHS Packaged Quantity 1 Pack Product Line Galaxy VM Product Name Galaxy VM 200kVA Tower UPS Product Type Double Conversion Online UPS Weight 1596.15 lb
Output Voltage 380V AC, 400V AC, 415V AC Phase Three Phase Receptacle Detail 1 x Hard Wire 4-wire (3P + E), 1 x Hard Wire 5-wire (3P + N + E) Receptacle Type Hard Wire 4-wire (3P + E), Hard Wire 5-wire (3P + N + E)
DC System Voltage 480 V DC Replaceable Battery Yes
Maximum Operating Elevation 3333 ft Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 49212.01 ft Maximum Storage Temperature 131?F Minimum Storage Temperature -13?F Thermal Dissipation 7200.76 W
EPO Port Yes Serial Port Yes
Application/Usage Data Center, Industrial Color White Depth 33.6" Form Factor Tower Height 77.6" Width 41.4"
Input Frequency 70 Hz Input Voltage 230V AC, 380V AC, 400V AC, 415V AC Output Frequency 60 Hz Waveform Type Sine Wave
Limited Warranty 1-Year
Environmental Certification UL Environmentally Friendly Yes
