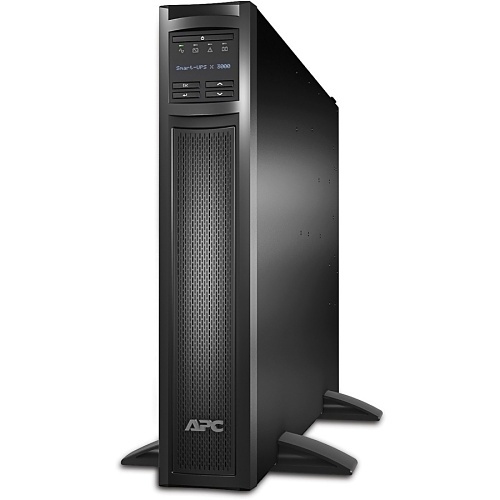

APC SMX3KR2UNCX145 Smart-UPS X 3000VA Rack/Tower LCD Uninterruptible Power Supply, 100-127V, Rack/Tower
SMX3KR2UNCX145|2G-R2UNCX145
APC SMX3KR2UNCX145 Smart-UPS X 3000VA Rack/Tower LCD Uninterruptible Power Supply, 100-127V, Rack/Tower
SMX3KR2UNCX145|2G-R2UNCX145
APC by Schneider Electric
APC SMX3KR2UNCX145 Smart-UPS X 3000VA Rack/Tower LCD Uninterruptible Power Supply, 100-127V, Rack/Tower
SMX3KR2UNCX145 | 2G-R2UNCX145
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Part of Smart-UPS
Over 20 million units sold - the UPS you can trust
Main Features
- StruxureWare Data Center Expert compatible-Enables centralized management via StruxureWare Data Center Expert
- Serial connection-Use your PC to access additional power protection and management features for your UPS via a serial port
- Wide input voltage range-Designed for harsh electrical environments to save battery life
- LED Indicators-Provide easy-to-read status of the unit and utility power conditions
- Overload protection-Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload
- Network manageable-Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions
- Boost and Trim Automatic Voltage Regulation (AVR)-Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress
- High online efficiency-Reduces utility costs, generates less heat
- Green mode-Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
- High frequency design-Reduces or eliminates bulky transformers resulting in lighter units for ease of handling
General Information
Name: APC SMX3KR2UNCX145 Smart-UPS X 3000VA Rack/Tower LCD Uninterruptible Power Supply, 100-127V, Rack/Tower
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-R2UNCX145 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SMX3KR2UNCX145 Packaged Quantity 1 Product Line Smart-UPS X Product Name Smart-UPS X 3000VA Tower/Rack Convertible UPS Product Type Line-interactive UPS Weight 84.59lb

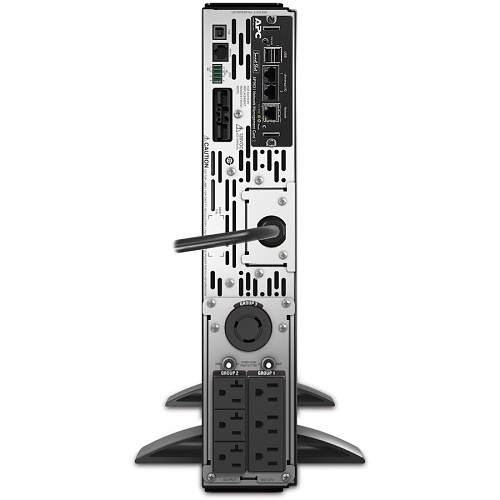

Input Receptacle Type NEMA L5-30P Number of Battery & Surge Outlets 7 Output Receptacle Type 1 NEMA L5-30R, 3 NEMA 5-15R, 3 NEMA 5-20R Output Voltage 120V Receptacle Detail 1 x NEMA L5-30R, 3 x NEMA 5-15R, 3 x NEMA 5-20R Receptacle Type NEMA 5-15R, NEMA 5-20R, NEMA L5-30R Transfer Time 4-Millisecond
Battery Chemistry VRLA Battery Life 5 Year Battery Recharge Time 3-Hour Replaceable Battery Yes
Status Indicators Yes
Maximum Operating Elevation 10000' Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 50000' Thermal Dissipation 80.89W
EPO Port Yes
Alarm Configurable Delay, Low Battery, On Battery
Application/Usage Hub, Network Device, POS, Router, Server, Switch Color Black Depth 26.26" Form Factor Rack Convertible, Tower Height 3.35" Rack Height 2U Width 17.01"
Input Frequency 60Hz Input Voltage 120V Output Frequency 60Hz Output Power 2880VA Plug/Connector Type NEMA L5-30P Surge Energy Rating 540J Waveform Type Sine Wave
Additional Warranty Information 3 years repair or replace (excluding battery) and 2 years for battery Limited Warranty 3-Year
Environmental Certification BSMI, CSA, NOM, TÜV, VCCI Class A, WEEE Environmentally Friendly Yes Package Contents CD with Software, Documentation CD, Installation Guide, Rack Mounting brackets, Rack mounting Hardware, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable, Web/SNMP management card
