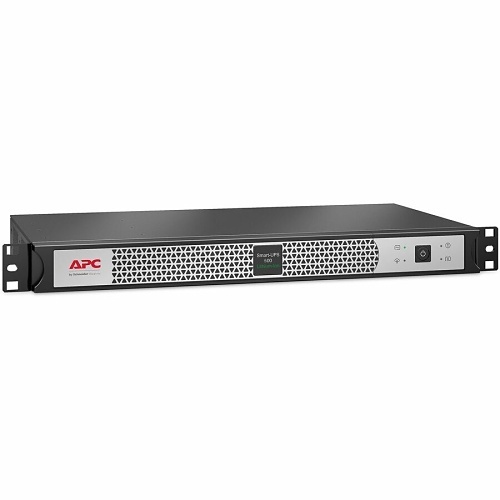

APC SCL500RM1UC Line Interactive Smart-UPS with SmartConnect Port, 500VA/400W, 5-15R NEMA Outlets, 1U RMS
APC SCL500RM1UC Line Interactive Smart-UPS with SmartConnect Port, 500VA/400W, 5-15R NEMA Outlets, 1U RMS
APC SCL500RM1UC Line Interactive Smart-UPS with SmartConnect Port, 500VA/400W, 5-15R NEMA Outlets, 1U RMS
SCL500RM1UC | 2G-SCL500RM1
Please sign in to view pricing and availability and to add to cart.
Product Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
Main Features
- Lithium-ion battery-Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly
- Short-depth rack compatibility-Compact design fits comfortably in short-depth rack applications
- Predictive replace battery date-Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
- Single switched outlet group-Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
- Cold-start capable-Provides temporary battery power when the utility power is out
- Temperature-compensated battery charging-Prolongs battery life by regulating the charge voltage according to battery temperature
- Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
General Information
Specifications
ADI Part Number 2G-SCL500RM1 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SCL500RM1UC Packaged Quantity 1 Product Line Smart-UPS Product Name Smart-UPS 500VA Rack/Floor Mountable UPS Product Type Line-interactive UPS Sector Data Comm & Networking Weight 9.22lb
AVR Yes Backup/Run Time (Full Load) 2.7-Minute Backup/Run Time (Half Load) 6.3-Minute Dataline Protection RJ-45 Energy Saving Yes Hot Swappable Yes Input Receptacle Type NEMA 5-15P Number of Battery & Surge Outlets 4 Output Receptacle Type 4 NEMA 5-15R Output Voltage 120V Receptacle Detail 6 x NEMA 5-15R Receptacle Type NEMA 5-15R Transfer Time 10-Millisecond
Battery Characteristics VRLA Battery Chemistry Li-Ion Battery Recharge Time 3-Hour Maximum Storage Relative Humidity 0.95 Replaceable Battery Yes
Status Indicators Yes
Maximum Operating Elevation 6561' Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 49212' Operating Humidity 10-90% Sound Emission 45 dB
EPO Port Yes Network (RJ-45) Yes Serial Port Yes
Alarm Configurable Delay, Low Battery, On Battery Network Management USB
Application/Usage Business, Communication System, Equipment, Network, Network Hub, POS Terminal, Router, Security System, Server, Storage, Switch, Voice/Data Network Color Black Depth 9.13" Form Factor Rack Mount Height 1.73" Rack Height 1U Width 17.01"
Input Frequency 63Hz Input Voltage 120V Output Frequency 60Hz Output Power 500VA Plug/Connector Type NEMA 5-15P Surge Energy Rating 680J Waveform Type Sine Wave
Software Included Yes
Additional Warranty Information 5 year repair or replace Limited Warranty 5-Year
Country of Origin PH Environmental Certification cULus, NOM Environmentally Friendly Yes Package Contents CD with Software, Documentation CD, Installation Guide, Rack Mounting support rails, USB cable
