Product Overview

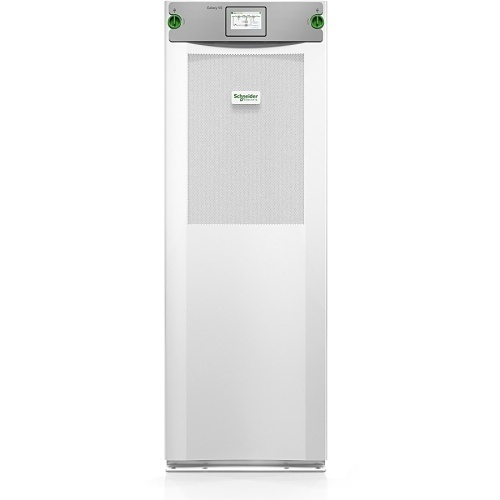

Galaxy VS UPS 60kW 480V for External Batteries, Start-up 5x8
Highly efficient, easy-to-deploy 60kW, 480V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode - reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.
Main Features
- 60kW, 480V 3-phase UPS for external batteries
- Best-in-class power protection for data centers
- Compact design with high-density technology
- Modular architecture for low total cost of ownership
- Reduces energy losses by up to 66%
- ECOnversion mode achieves up to 99% efficiency
- EcoStruxure-ready for remote monitoring
- Includes 5x8 start-up service
General Information
Specifications
ADI Part Number 2G-SUPS60KGS Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number GVSUPS60KGS Product Line Galaxy VS Product Name Galaxy VS 60kVA Tower UPS Product Type Double Conversion Online UPS Weight 551.16 lb
Output Voltage 480V AC Phase Three Phase Receptacle Detail 1 x Hard Wire 4-wire (3P + E), 1 x Hard Wire 5-wire (3P + N + E) Receptacle Type Hard Wire 4-wire (3P + E), Hard Wire 5-wire (3P + N + E)
Battery Characteristics Valve Regulated Lead Acid (VRLA) Battery Chemistry Lithium Ion (Li-Ion)
Energy Star Yes
Maximum Operating Elevation 3281 ft Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 50000 ft Thermal Dissipation 1634.16 W
Network Management SNMP/Modbus
Application/Usage Commercial, Critical System, Data Center, Industrial Color White Depth 33.3" Form Factor Tower Height 58.5" Width 20.5"
Input Frequency 70 Hz Input Voltage 480V AC Output Frequency 60 Hz Plug/Connector Type Hard Wire 4-wire (3P + E) Waveform Type Sine Wave
Software Included EcoStruxure Ready
Limited Warranty 1-Year
Country of Origin PH Environmental Certification China RoHS, FCC, Green Premium, REACH, RoHS, UL Environmentally Friendly Yes Package Contents - Galaxy VS 60kVA Tower UPS
- Dust Filter
- Installation Guide
- Integrated Network Management
- Power Modules Ship Installed
- Start-up Service
- Top And Bottom Cable Entry
