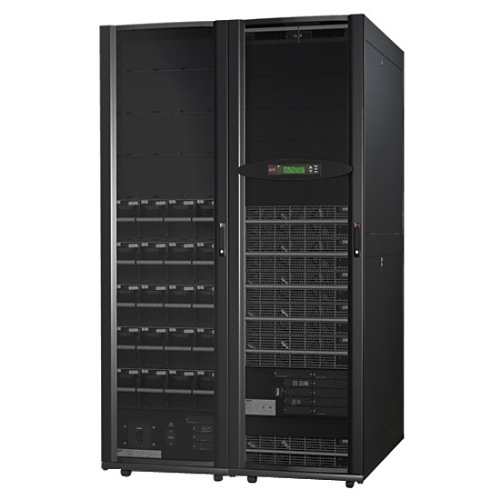

APC SY50K100F Symmetra PX 50kW Scalable to 100kW, 208V
APC SY50K100F Symmetra PX 50kW Scalable to 100kW, 208V
APC SY50K100F Symmetra PX 50kW Scalable to 100kW, 208V
SY50K100F | 2G-SY50K100F
Please sign in to view pricing and availability and to add to cart.
Product Overview
The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.
Main Features
- Redundant and scalable power protection system
- Seamlessly integrates into modern data centers
- Modular design for easy servicing
- Scalable power and runtime for growing demands
- Core power train for APC InfraStruXure systems
- Self-diagnostic capabilities for reliability
- Standardized modules reduce human error
General Information
Specifications
ADI Part Number 2G-SY50K100F Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SY50K100F Product Line Symmetra Product Model SY50K100F Product Name Symmetra PX SY50K100F 50kVA Tower UPS Product Series PX Product Type Double Conversion Online UPS Weight 2828 lb
Backup/Run Time (Full Load) 6 Minute Output Voltage 208V AC Receptacle Detail 1 x Hard Wire 5-wire Receptacle Type Hard Wire 5-wire Transfer Time 2 ms
Battery Characteristics Valve Regulated Lead Acid (VRLA) Battery Chemistry Lead Acid Battery Recharge Time 2-Hour
Maximum Operating Elevation 3333' Maximum Operating Temperature 104?F Maximum Storage Elevation 5000'
Network Management SNMP Manageable
Application/Usage Data Center Depth 42" Height 79.2" Width 47.2"
Input Frequency 70 Hz Input Voltage 220V AC Output Frequency 60 Hz
Limited Warranty 1-Year
Environmental Certification FCC, Green Premium, ISO, UL Environmentally Friendly Yes Package Contents - Symmetra PX SY50K100F 50kVA Tower UPS
- Installation Guide
- Network Management Card
- User Manual
- 5 x Battery Modules
