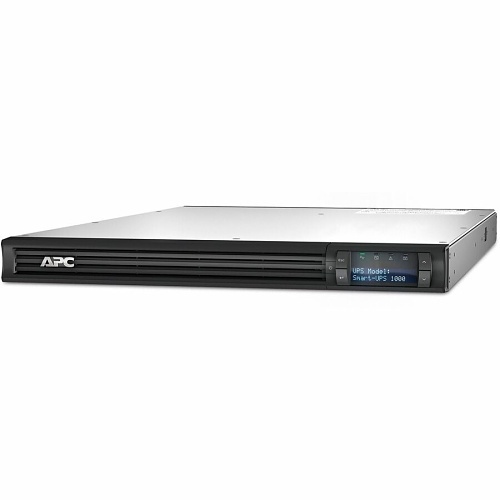

APC SMT1000RM1U Smart-UPS Line Interactive, Rack-Mountable, 1000VA, LCD Display
APC SMT1000RM1U Smart-UPS Line Interactive, Rack-Mountable, 1000VA, LCD Display
APC SMT1000RM1U Smart-UPS Line Interactive, Rack-Mountable, 1000VA, LCD Display
SMT1000RM1U | 2G-T1000RM1U
Please sign in to view pricing and availability and to add to cart.
Product Overview
This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity The 1000VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead acid battery has a 2-year warranty. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.
Main Features
- Upto 25% more W (higher PF) & 23% depth reduction (20")
- 1U short depth, rack-mountable design
- LCD screen for status display
- AVR double boost and trim
- Higher efficiency ES V2 (98%)
- USB port for communication?Up to 25% more power (higher PF) & 23% depth reduction (20 in.)
- LCD status display
- USB port for communication
General Information
Specifications
ADI Part Number 2G-T1000RM1U Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SMT1000RM1U Packaged Quantity 1 Product Line Smart-UPS Product Name Smart-UPS SMT 1000VA Rack-mountable UPS Product Series SMT Product Type Line-interactive UPS Sector Data Comm & Networking Weight 34.83lb
AVR Yes Backup/Run Time (Full Load) 1.55-Minute Backup/Run Time (Half Load) 9.45-Minute Input Receptacle Type NEMA 5-15P Output Receptacle Type 4 NEMA 5-15R Output Voltage 120V Receptacle Detail 4 x NEMA 5-15R Receptacle Type NEMA 5-15P Transfer Time 8-Millisecond
Battery Chemistry VRLA Battery Life 5 Year Battery Recharge Time 5-Hour Maximum Storage Relative Humidity 0.95 Replaceable Battery Yes
Maximum Operating Elevation 10000' Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 50000' Thermal Dissipation 25.79W
Alarm Configurable Delay, Low Battery, On Battery

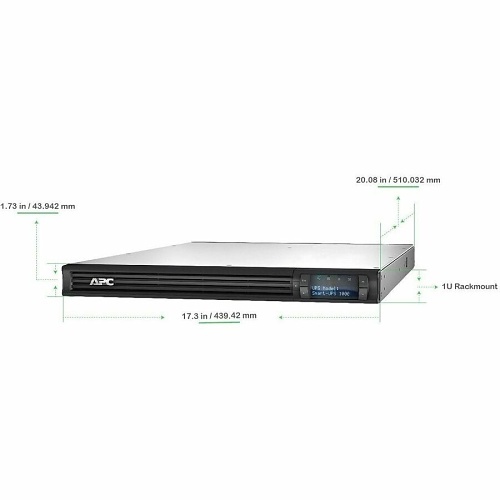

Application/Usage Business, Hyperconverged Infrastructure (HCI), Server, Virtual Machine Color Black Depth 19.76" Form Factor Rack Mount Height 1.73" Rack Height 1U Width 17.01"
Input Frequency 60Hz Input Voltage 120V Output Frequency 60Hz Output Power 1000VA Plug/Connector Type NEMA 5-15P Surge Energy Rating 540J Waveform Type Sine Wave
Additional Warranty Information 3 years repair or replace (excluding battery) and 2 years for battery Limited Warranty 3-Year
Environmental Certification CSA Environmentally Friendly Yes Package Contents User Manual
