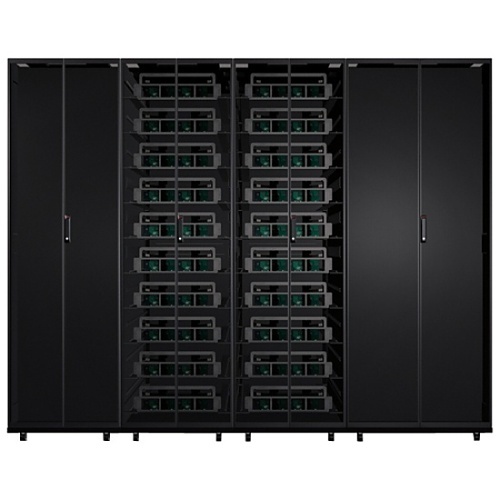

APC SY125K500D Symmetra PX 125kW Scalable to 500kW
APC SY125K500D Symmetra PX 125kW Scalable to 500kW
APC SY125K500D Symmetra PX 125kW Scalable to 500kW
SY125K500D | 2G-Y125K500D
Please sign in to view pricing and availability and to add to cart.
Product Overview
The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.
Main Features
- Redundant and scalable power protection
- Seamlessly integrates into modern data centers
- Modular design with dedicated components
- Easily serviceable architecture
- Scalable power and runtime
- Self-diagnostic capabilities
- Standardized modules for reliability
- Standardized modules to reduce human error
General Information
Specifications
ADI Part Number 2G-Y125K500D Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SY125K500D Product Line Symmetra Product Model SY125K500D Product Name Symmetra PX SY125K500D 125kVA Tower UPS Product Series PX Product Type Double Conversion Online UPS Weight 6300.22lb
Backup/Run Time (Full Load) 6-Minute Backup/Run Time (Half Load) 18-Minute Output Voltage 400V AC, 480V AC Receptacle Detail 1 x Hard Wire 4-wire, 1 x Hard Wire 5-wire Receptacle Type Hard Wire 4-wire, Hard Wire 5-wire Transfer Time 2-Millisecond
Battery Characteristics VRLA Battery Chemistry Lead Acid Battery Recharge Time 3.5-Hour
Maximum Operating Elevation 3333' Maximum Operating Temperature 104?F Maximum Storage Elevation 5000' Thermal Dissipation 5693.49W
Network Management SNMP Manageable
Application/Usage Critical Environment, Data Center Color Black Depth 42.1" Form Factor Tower Height 78.4" Width 116.1"
Input Frequency 70Hz Input Voltage 220V AC Output Frequency 60Hz Plug/Connector Type Hard Wire 4-wire, Hard Wire 5-wire
Limited Warranty 1-Year
Energy Star Yes Environmental Certification Green Premium, UL Environmentally Friendly Yes Package Contents - Symmetra PX SY125K500D 125kVA Tower UPS
- 8 x Battery Module
- Assembly Service
- Installation Guide
- Network Management Card
- Start-Up Service
- User Manual
