SY250K500D | 2G-Y250K500D
Please sign in to view pricing and availability and to add to cart.
Product Overview

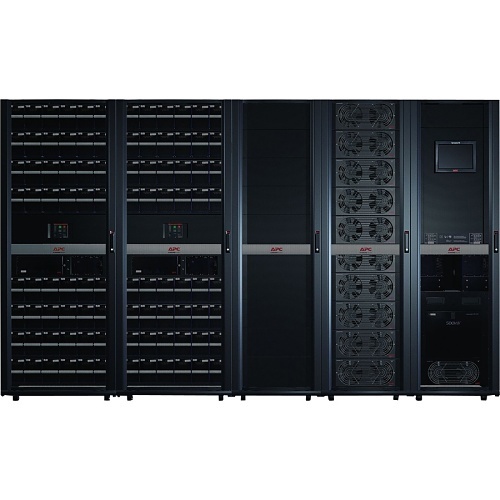

The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.
Main Features
- Redundant and scalable power protection system
- Seamlessly integrates into modern data centers
- Modular design with dedicated and redundant modules
- Easily and efficiently serviceable architecture
- Scales power and runtime as demand grows
- Core power train for APC InfraStruXure systems
- Self-diagnostic capabilities for increased reliability
- Standardized modules to reduce human error
General Information
Specifications
ADI Part Number 2G-Y250K500D Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SY250K500D Product Line Symmetra Product Model SY250K500D Product Name Symmetra PX SY250K500D 250kVA Tower UPS Product Series PX Product Type Double Conversion Online UPS Weight 10806 lb
Backup/Run Time (Full Load) 6.10 Minute Backup/Run Time (Half Load) 17.60 Minute Output Voltage 400V AC, 480V AC Receptacle Detail 1 x Hard Wire 4-wire, 1 x Hard Wire 5-wire Receptacle Type Hard Wire 4-wire, Hard Wire 5-wire Transfer Time 2 ms
Battery Characteristics Valve Regulated Lead Acid (VRLA) Battery Chemistry Lead Acid Battery Recharge Time 8-Hour
Energy Star Yes
Maximum Operating Elevation 3333' Maximum Operating Temperature 104?F Maximum Storage Elevation 5000' Thermal Dissipation 9069.37W
Network Management SNMP Manageable
Application/Usage Data Center, Mission Critical Equipment Depth 42" Height 78.4" Width 12.1 ft
Input Frequency 70 Hz Input Voltage 220V AC Output Frequency 60 Hz Plug/Connector Type Hard Wire 4-wire, Hard Wire 5-wire
Limited Warranty 1-Year
Environmental Certification Green Premium, UL Environmentally Friendly Yes Package Contents - Symmetra PX SY250K500D 250kVA Tower UPS
- Assembly Service
- Installation Guide
- Network Management Card
- Start-Up Service
- User Manual
- 16 x Battery Modules
