Product Overview

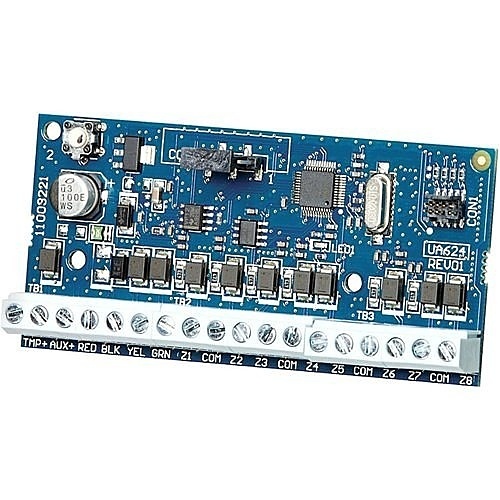

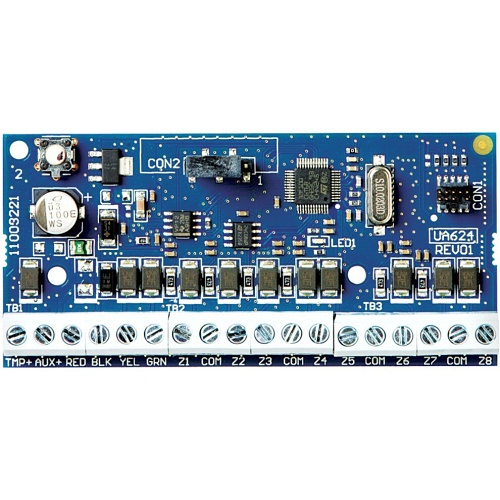

The HSM2108 is a zone input module that adds up to eight fully programmable zone to any PowerSeries Neo security system.
Main Features
- Supports no end-of-line, single end-of-line and double end-of-line zone loops. (5,600 Ohms resistors)
- Connect up to 15 modules per system
- Tamper contact input
- Dimensions: 45mm x 92mm (1.12/16” x 3 5/8”)
- 40 mA (Max)
- 12 VDC Nominal
- Fully supervised expansion ensures constant communication with PowerSeries Neo control panel
- Simple wiring can be home run, daisy chained or tee-tapped anywhere on the Corbus
- Fully encrypted communications back to PowerSeries Neo
General Information
Name: DSC HSM2108 PowerSeries Pro Neo Zone Expander Module 8, Hardwired
Category: DSC, Intrusion, Alarm Control Panels & Keypads, Control Panels, ADI Pro Rewards
UPC Code: 820043000085
Country of Origin: CA. Country of origin is subject to change.
Specifications
ADI Part Number 3W-HSM2108 Brand Name DSC Manufacturer Johnson Controls Manufacturer Part Number HSM2108 NDAA Compliant No Product Line PowerSeries Neo Product Model HSM2108 Product Name Hardwired Security Expansion Product Type Alarm Control Panel Expansion Module
Connectivity Technology Wired Device Supported Control Panel Impedance 600 ohms Number of Zones Supported 8
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature 14°F (-10°C)
Height 1.8" Width 3.6"
Input Voltage 12V DC
Installation Type Hybrid
Certifications & Standards CCC Certification Denmark,
CE Declaration of Compliance, CSFM Listing, F&G Registration Grade 2/Class IIUnited States,
F&P RegistrationEurope,
Finnish Insurance Certification Grade2/Class IIHolland,
INCERT CertificateCanada,
NCP CertificateNorway,
ULC Commercial Burglary,Australia
C-tick ComplianceBelgium, CertAlarm Certificate, EN50130-5VSO
Finland, SIA CP-01 Compliance, UL Commercial Burglary, UL Residential Burglary, UL Residential Fire, ULC Commercial Fire Monitoring, ULC Residential Burglary, ULC Residential Fire
China
Compatibility DSC PowerSeries Neo Control Panel Environmental Certification RoHS Features Fully encrypted communications back to PowerSeries Neo
