Product Overview

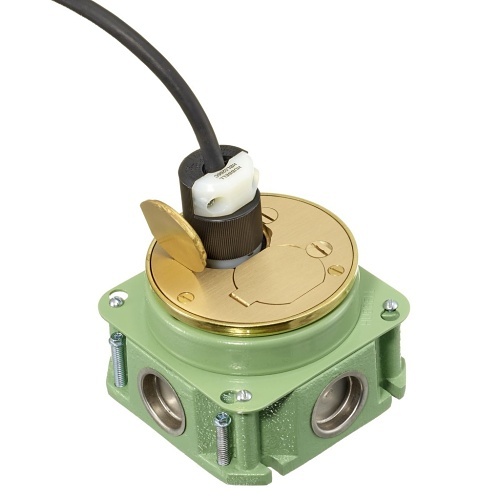

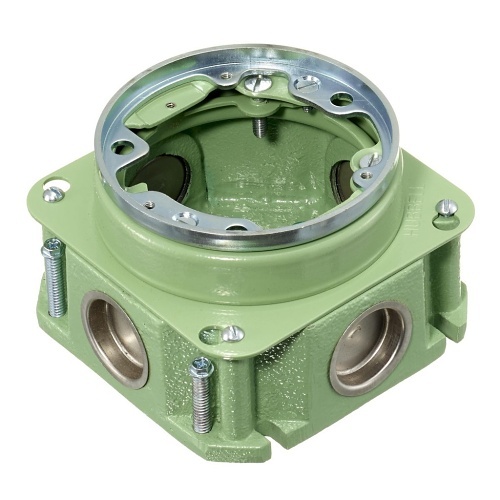

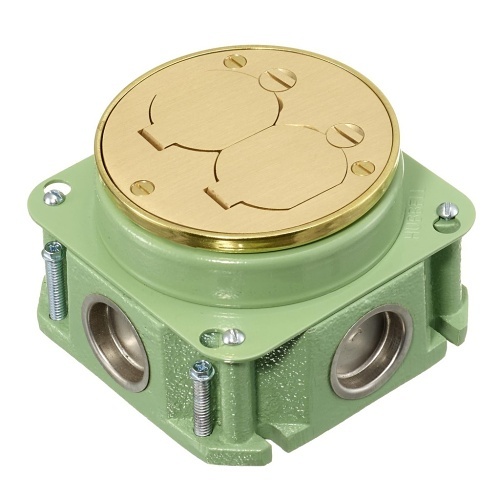

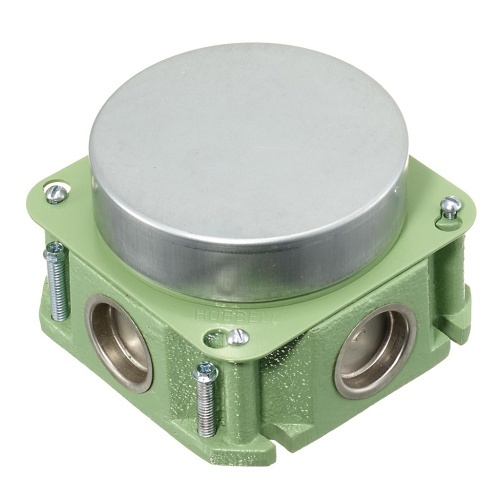

Round flush deep cast iron base floorbox with a stamped steel adjustable top for use with Round covers and flanges, green corrosion resistant painted, for use in concrete floors. This 1-gang box has 3.25" Minimum depth of pour, includes installation concrete cover, pregalvanized steel flange spacer, and external 1.25" Prepour leveling screws. Box has .50" adjustable top, (4) 1" Threaded hubs, ships with (2) 1" to 3/4" Threaded reducers and (1) 6" long #12 AWG Ground wire.
Main Features
- 3.25" Minimum depth of pour
- (4) 1" Threaded hubs, ships with (2) 1" to 3/4" Threaded reducers
- 1.25" Prepour and 0.50" post pour adjustment
- Green painted corrosion-resistant cast iron base and stamped steel top
- For use in slab on grade, 2nd floor and above concrete floors
- Single service only
- Includes (1) 6" solid #12 AWG conductor Grounding pigtail
General Information
Name: Hubbell FB2536 Flush 1-Gang Concrete Floorbox with Round Cover, 3.25" Minimum Depth of Pour
Category: Hubbell Premise Wiring, Video Surveillance, IP Cameras, Dome Cameras
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 40-FB2536 Brand Name Hubbell Premise Wiring Manufacturer Part Number FB2536 Product Name Flush 1-Gang Concrete Floorbox with Round Cover, 3.25" Minimum Depth of Pour Product Type Floorbox
Number of Gangs 1
Application/Usage Concrete Floors Color Green Height 3.12" Material Cast Iron, PVC Spacer Width 4.85"
Environmental Certification cULus, UL Listed
