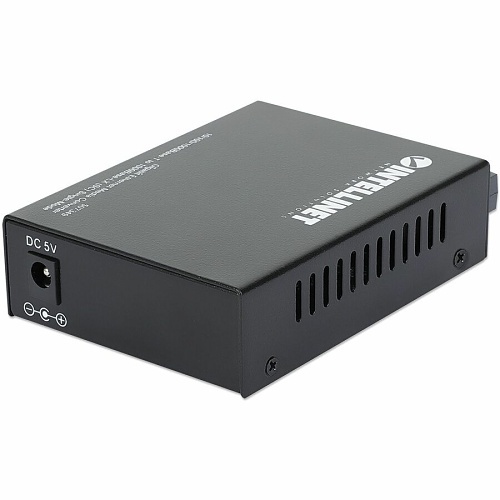

Intellinet 507349 Gigabit Ethernet Single-Mode Media Converter, 10/100/1000Base-T to 1000Base-LX, Distances of Up to 12.4mi

Intellinet 507349 Gigabit Ethernet Single-Mode Media Converter, 10/100/1000Base-T to 1000Base-LX, Distances of Up to 12.4mi

Intellinet 507349 Gigabit Ethernet Single-Mode Media Converter, 10/100/1000Base-T to 1000Base-LX, Distances of Up to 12.4mi
507349 | 42-507349
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Intellinet Network Solutions Gigabit Ethernet Single Mode Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. Expands the Size of an Existing Network. Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices. Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device. Cabling Flexibility. Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location, and up to 14 media converters can be simultaneously installed into a 19" rack-mountable chassis (model 507356).
Main Features
- Fiber SC single-mode port connects over distances of up to 20 km (12.4 miles)
- Data transfer rate: 10/100/1000 Mbps
- 10/100/1000 Mbps auto-sensing Gigabit Ethernet RJ45 port with Auto MDI/MDI-X support
- RJ45 port with Auto MDI/MDI-X support and auto-negotiation
- 1000Base-LX single-mode Fiber SC duplex port
- Wavelength: 1310 nm
- Status LEDs for power and Link/TX for both ports
- External power adapter, 5 VDC
- Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
- Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
General Information
Specifications
ADI Part Number 42-507349 Brand Name Intellinet Manufacturer IC INTRACOM Manufacturer Part Number 507349 Maximum Distance 12.43 Mile Product Name Gigabit Ethernet Single-Mode Media Converter Product Type Transceiver/Media Converter Weight 6.35oz
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber, Twisted Pair Power Consumption 5W
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1310 nm Network Technology 10/100/1000Base-T, 1000Base-LX
Ethernet Technology 10 Gigabit Ethernet
Form Factor Desktop Mount, Rack Mount Height 1" Width 2.8"
Power Source Power Adapter
Limited Warranty 3-Year
Package Contents - Gigabit Ethernet Single-Mode Media Converter
- External Power Adapter
- Instructions
