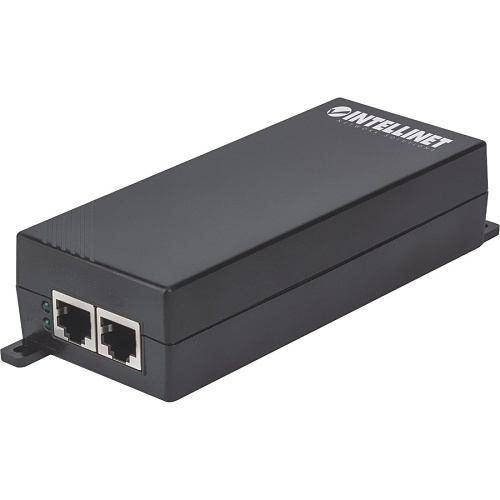

Intellinet 561518 Gigabit High Power PoE Injector,1x30W Port, IEEE 802.3at/af Compliant, Plastic Housing
Intellinet 561518 Gigabit High Power PoE Injector,1x30W Port, IEEE 802.3at/af Compliant, Plastic Housing
Intellinet 561518 Gigabit High Power PoE Injector,1x30W Port, IEEE 802.3at/af Compliant, Plastic Housing
561518 | 42-561518
Please sign in to view pricing and availability and to add to cart.
Product Overview
Provide both power and data to a Powered Device (PD) using existing Cat5 cable and this PoE Injector. The Intellinet Network Solutions Gigabit High-Power PoE+ Injector lets you connect your IEEE 802.3af/at-compliant product to a non-PoE LAN switch port. The Power over Ethernet Injector can power and supply a network connection to a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered PD. This injector has an output power rating up to 30 watts. That s enough for even power-hungry PoE devices. Reduce Wiring Costs. There s no need to run AC power lines to get your PD set up and ready to do what it s supposed to. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data. Protect Your Equipment. Once DC power is connected to your networked equipment through the Cat5e/6 cabling, the Intellinet Network Solutions PoE Injector ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages.
Main Features
- Saves time and money by delivering data and power via existing network cables
- IEEE 802.3at compliant (PoE+)
- Power output up to 30 watts
- Distance support: up to 100 m (328 ft.)
- Supports all IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (Wireless LAN access points and bridges, VoIP [Voice over Internet Protocol] telephones, IP surveillance cameras and more)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- Internal power supply
- Fully NDAA-compliant
- Fully NDAA-compliant
- Three-year warranty
General Information
Specifications
ADI Part Number 42-561518 Brand Name Intellinet Manufacturer IC INTRACOM Manufacturer Part Number 561518 NDAA Compliant Yes Product Model 561518 Product Name Gigabit High-Power PoE+ Injector Product Type PoE Injector Weight 6.70oz
Input Ports 100/1000Base-T Output Ports Gigabit PoE
Height 1.3" Width 2.6"
Input Voltage 120V AC, 230V AC Maximum Frequency 60 Hz Maximum Output Power 30W Maximum Output Voltage 48 V DC Minimum Frequency 50Hz
Length 5.4" Protection Type Overload Protection, Short Circuit
