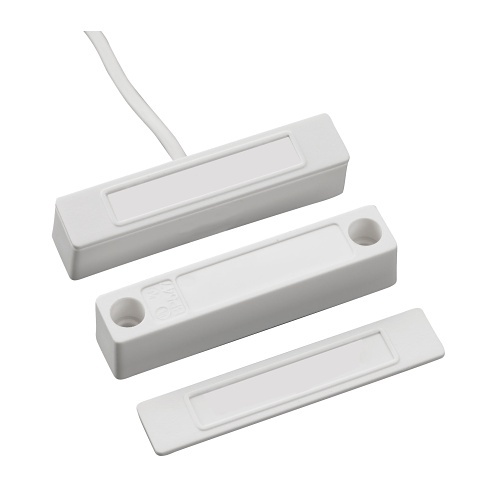

Resideo 4939SN-WH V-Plex Surface Mount Contact with Cover, White
4939SN-WH|4939SN-WH
Resideo 4939SN-WH V-Plex Surface Mount Contact with Cover, White
4939SN-WH|4939SN-WH
Resideo
Resideo 4939SN-WH V-Plex Surface Mount Contact with Cover, White
4939SN-WH | 4939SN-WH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Programmable V-Plex addressable surface mount contact. Compatible with control panels with serial number device capabilities for multiplex polling loop.
Main Features
- programmable surface mount contact
- Compatible with control panels with serial number device capabilities for multiplex polling loop
- Standard gap: 1-1/4" (32 mm)
- Programmed from VISTA keypad or learn mode
- Switch Type: Form A (SPST) Reed
- Contact Rating: 12VDC 1mA. Power supplied by the control panels V-Plex® polling loop.
General Information
Name: Resideo 4939SN-WH V-Plex Surface Mount Contact with Cover, White
Category: Resideo, Intrusion, Alarm Contacts, Magnetic Contacts, ADI Pro Rewards
UPC Code: 781410007086
Country of Origin: MX. Country of origin is subject to change.
Specifications
ADI Part Number 4939SN-WH Brand Name Resideo Manufacturer Resideo Manufacturer Part Number 4939SN-WH Product Model 4939SN Product Name 4939SN-WH Magnetic Contact Product Type Magnetic Contact
Battery Size Not Applicable Connectivity Technology Wired
Minimum Operating Temperature -76°F
Application/Usage Security System Sensors Cable Length 5' Color White Height 0.53" Width 0.5"
Contact Type SPST Installation Type Commercial Length 2.5" Mount Type Surface Mount Switch Type Reed Switch
Limited Warranty 2-Year
Additional Information - Standard gap: 1-1/4" (32mm)
- 5' (1.5m) CLII jacketed cable
- Epoxy sealed for protection from moisture and impact
- Programmed from VISTA keypad or learn mode
- V-Plex addressable surface mount contact
Compatibility Control Panels With Serial Number Device Capabilities For Multiplex Polling Loop
