Product Overview
The Orion Images OIC-M802 8 x 2 HD Multi-Viewer System outputs eight video sources to a display or multiple displays in various configurations. All eight sources can be sent to one display, via one output, in a split-screen configuration; or four of the sources can be sent to one display, via one output, and the other four to another display, via a second output, both outputs outputting in split-screen configurations; or all eight sources can be output to an 8-screen video wall, with each source displaying as a resizable window.
Main Features
- Outputs 8 video sources to one or multiple displays in various configurations

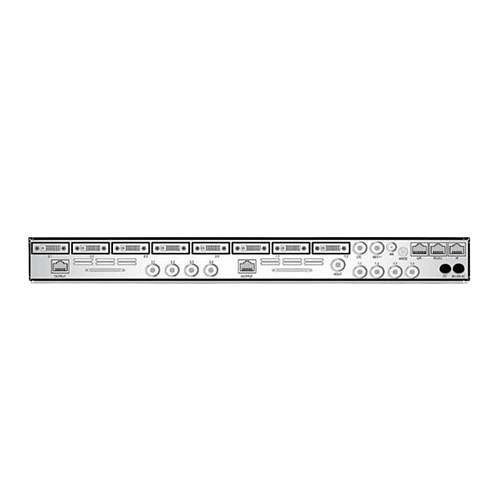

- Eight DVI inputs, two RJ45 outputs, and many adapter and extender cables
- Space for optional SDI, Component, and Composite connections
- Selectable output resolutions up to 2048 x 1080, including 1920 x 1080p
- Front panel headphone jack with volume adjustment for audio monitoring
- Built-in CATx extender extends 1080p 35 ft
- Front panel buttons for 30 quick preset recalls
- 1 RU rack-mountable
General Information
Name: ORION Images OIC-M802 HD Multi-Window Monitoring System, 8-Input
Category: ORION Images, Pro AV, Commercial Displays, Pro Display Accessories & Mounts
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 4O-OICM802 Brand Name ORION Images Manufacturer ORION Images Corporation Manufacturer Part Number OIC-M802 Product Model OIC-M802 Product Name Multiviewer System Product Series OIC-MP Product Type Video Processor
Depth 19.7" Form Factor Rack Mount Height 1.8" Width 17.5"
Limited Warranty 3-Year
Package Contents - Multiviewer System
- Power Supply
- VGA to DVI-I Adaptor
- RJ45 to DVI-I Adaptor
- RJ45 to HDMI Adaptor
