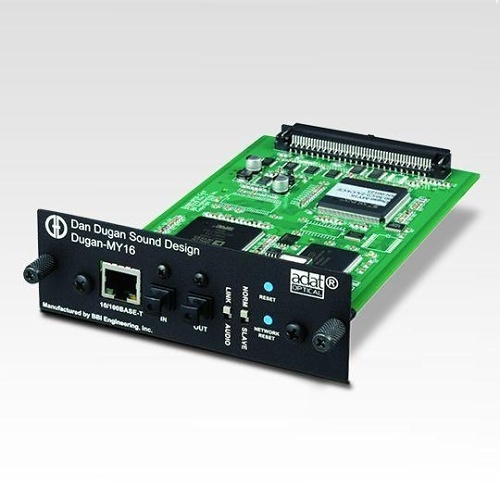

Yamaha DUGAN-MY16 16-Channel Automatic Mixing Controller Card
DUGAN-MY16|60-DUGANMY16
Yamaha DUGAN-MY16 16-Channel Automatic Mixing Controller Card
DUGAN-MY16|60-DUGANMY16
Yamaha
Yamaha DUGAN-MY16 16-Channel Automatic Mixing Controller Card
DUGAN-MY16 | 60-DUGANMY16
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Dugan-MY16 is an optional Automatic Mixing Controller Card for compatible Yamaha digital mixing consoles and signal processors. It employs advanced technology from Dan Dugan Sound Design.
Main Features
- 24bit resolution, 16-in/16-out automatic mixing (8-in/8-out at 96 kHz)
- 2x Optical connectors, 1x RJ-45 connector
- Up to 8 cards can be used simultaneously to handle up to 128 channels at 48 kHz, or 64 channels at 96 kHz
- Automatic detection of active mics with automatic control of individual channel and overall gain
- No speech cutoff due to late fader activation, for smooth, uninterrupted sound
- Effective background noise and feedback suppression without the need for noise-gate type threshold level settings
- Easy setup simply insert on the appropriate mixer input channels and raise the faders
- Channels can be grouped to make up to three independent automatic mixers
- Dugan Control Panel software application provides remote control and level monitoring capability
- Can also function as an 8-channel auto-mixer + 8-channel ADAT interface
General Information
Name: Yamaha DUGAN-MY16 16-Channel Automatic Mixing Controller Card
Category: Yamaha, Pro AV, Commercial Audio, Pro Audio Mixers
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number 60-DUGANMY16 Brand Name Yamaha Manufacturer Part Number DUGAN-MY16 Product Type Expansion Card Weight 0.84lb
Height 8.6" Width 2.6"
Length 10.6"
Country of Origin US
