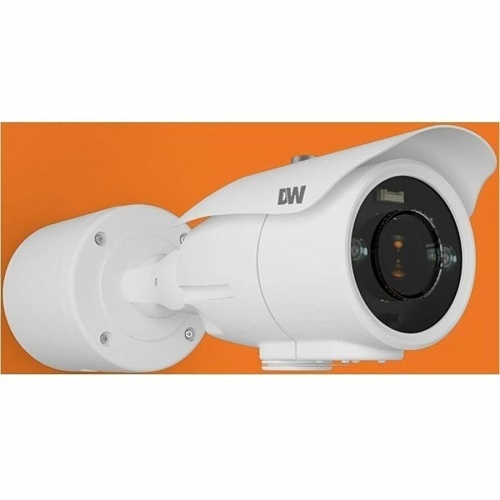

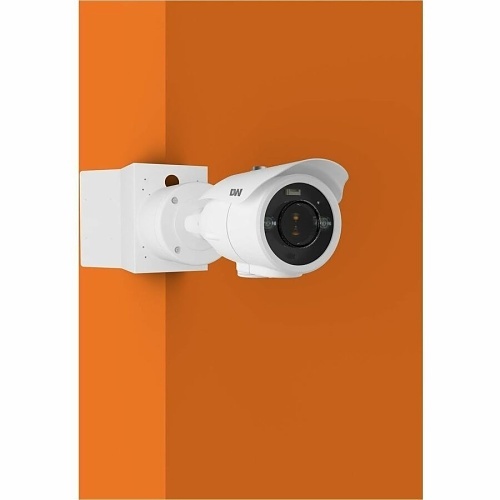

Digital Watchdog DWC-LPR650UW 2.1Mp/1080P Uhdoc Lpr Bullet Camera with Long Range Vari-Focal Lens and Ir
DWC-LPR650UW|6K-LPR650UW
Digital Watchdog DWC-LPR650UW 2.1Mp/1080P Uhdoc Lpr Bullet Camera with Long Range Vari-Focal Lens and Ir
DWC-LPR650UW|6K-LPR650UW
Digital Watchdog
Digital Watchdog DWC-LPR650UW 2.1Mp/1080P Uhdoc Lpr Bullet Camera with Long Range Vari-Focal Lens and Ir
DWC-LPR650UW | 6K-LPR650UW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The 2.1MP/1080p LPR camera delivers crystal-clear images and supports real-time 30fps HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H. The camera is engineered to capture license plates of moving vehicles at up to 50mph, in extreme light conditions, from a 13-30' range. The IP66-rated vandal housing assures that license plates are captured clearly and visibly, no matter the lighting challenge or weather condition. DW LPR cameras are a cost-effective, high-resolution surveillance solution.
Main Features
- Universal HD over coax technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
- 2.1MP/1080p 1/3" image sensor at real-time 30fps
- HD Analog LPR, license plate recognition technology, captures reflective license plates up to 50mph with a 13°-30° capture range
- Reliable performance under any lighting conditions
- External OSD and lens adjustment
- 6-50mm varifocal P-Iris lens
- OSD control via coaxial (UTC)
- 60' Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- Highlight masking exposure (HME)
General Information
Name: Digital Watchdog DWC-LPR650UW 2.1Mp/1080P Uhdoc Lpr Bullet Camera with Long Range Vari-Focal Lens and Ir
Category: Digital Watchdog, Video Surveillance, HDoC Cameras, Bullet Cameras
UPC Code: 812226037087
Country of Origin: VN. Country of origin is subject to change.
Specifications
ADI Part Number 6K-LPR650UW Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWCLPR650UW Product Line Star-Light Plus Product Model DWC-LPR650UW Product Name 2.1MP/1080p UHDoC LPR Bullet Camera with a Long Range Vari-focal Lens and IR Product Type Surveillance Camera Weight 1.83lb
American Wire Gauge 18AWG Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal, Vertical Illumination Distance 60' Lens Type Varifocal Material Aluminum Die-cast Maximum Frame Rate 30fps Minimum Focal Length 6mm Motion Detection Yes Night Vision Yes Night Vision Type Infrared Optical Zoom 8.3x Output Voltage 24V AC Programmable Yes Video Formats H.264, MJPEG
Night Vision Distance 115 ft Wide Dynamic Range Yes
Image Sensor Size 1/3" Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -4-122°F
Longest Shutter Speed 1/30 Second Minimum Illumination 0.0 lux (B/W) Shortest Shutter Speed 1/30000 Second
Focal Length 6-50 mm Focus Modes Auto, Manual Lens Included Yes Maximum Focal Length 50 mm
Color White Durability Dustproof, Tamper Resistant, Waterproof, Weather Resistant Form Factor Bullet
Frequency 50 Hz, 60 Hz Input Voltage 12V DC, 24V AC
Recording Formats Full HD
Analog Video Signal Format AHD, CVBS, HDCVI, HD-TVI Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Certifications CE, FCC, NDAA Environmental Certification RoHS Environmentally Friendly Yes Features 3D Digital Noise Reduction, Auto Gain Control, Back Light Compensation (BLC), Built-in Joystick, Built-in OSD Function, Day/Night, Defog, Digital Noise Reduction, Mirror, Motion Detection Ingress Protection Rating IP66
