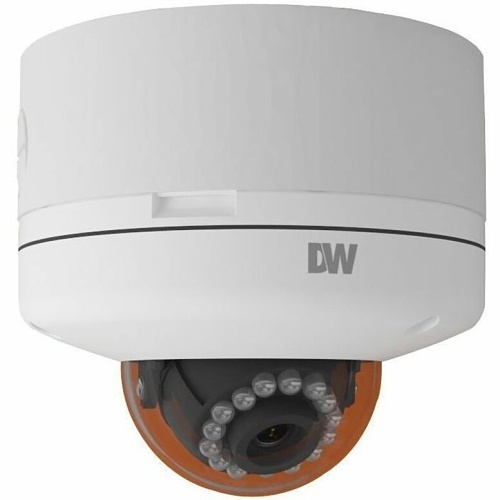

Digital Watchdog DWC-MF4WI6WC1T 4MP Ultra Low-Profile Vandal Dome IP Camera, 6.0 Fixed Lens, 1TB Storage
Digital Watchdog DWC-MF4WI6WC1T 4MP Ultra Low-Profile Vandal Dome IP Camera, 6.0 Fixed Lens, 1TB Storage
Digital Watchdog DWC-MF4WI6WC1T 4MP Ultra Low-Profile Vandal Dome IP Camera, 6.0 Fixed Lens, 1TB Storage
DWC-MF4WI6WC1T | 6K-MF4WI6WC1
Please sign in to view pricing and availability and to add to cart.
Product Overview
The MEGApix CaaS Series (Camera as a Server) combines the quality of MEGApix cameras with the ease and power of DW Spectrum IPVMS pre-loaded and on-board storage, making each CaaS camera its own self-contained video surveillance system. Each CaaS camera includes the DW Spectrum IPVMS server software and a recording license. No additional server hardware is required, making MEGApix CaaS an easy and cost-effective way to deploy high-definition IP video systems in small installations. Easily manage all your DW Spectrum systems with the DW Cloud online portal. On-board storage options at 512GB or 1TB provide up to 90 days of retained video.
Main Features
- All-in-one cameras, no server required
- 4MP 1/3" image sensor at real-time 30 fps
- 4mm fixed lens (DWC-MF4Wi4WC5, DWC-MWF4Wi4WC1T)
- 6mm fixed lens (DWC-MF4Wi6WC5, DWC-MWF4Wi6WC1T)
- Built-in 512GB and 1TB storage options for up to 60 days of retained video
- Easily to deploy with pre-loaded DW Spectrum IPVMS for out-of-the-box operation
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- Connect up to 30 MEGApix CaaS edge cameras
- True Wide Dynamic Range (WDR)
General Information
Specifications
ADI Part Number 6K-MF4WI6WC1 Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-MF4WI6WC1T Product Line MEGApix CaaS Product Model DWC-MF4WI6WC1T Product Name 4MP ultra low-profile vandal dome edge IP camera Product Series MF4 Product Type Network Camera Supported Network Protocols IPv4 Weight 1.54lb
American Wire Gauge 18AWG Connectivity Technology Wired Effective Camera Resolution 4MP Field of View Horizontal, Vertical Illumination Distance 50' Lens Type Fixed Material Aluminum Die-cast Maximum Aperture f/2.0 Maximum Frame Rate 30fps Minimum Focal Length 6mm Motion Detection Yes Night Vision Yes Night Vision Type Infrared Number of Controllable Cameras 30 Output Voltage 12V DC Programmable Yes Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) Video Formats H.264, MJPEG
Night Vision Distance 50 ft Wide Dynamic Range Yes
Image Sensor Size 1/3" Maximum Video Resolution 2560 x 1440
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -4-122°F
Longest Shutter Speed 1/30 Second Minimum Illumination 0.0 lux (B/W)|0.41 lux (color) Shortest Shutter Speed Off|x10|x5|x7.5
Network (RJ-45) Yes
Focal Length 4.0 mm Focus Modes Auto, Manual Lens Included Yes Maximum Focal Length 6 mm
Remote Management Yes
Color White Durability Weather Resistant Form Factor Dome Height 2.9" Width 4.9"
Input Voltage 12V DC

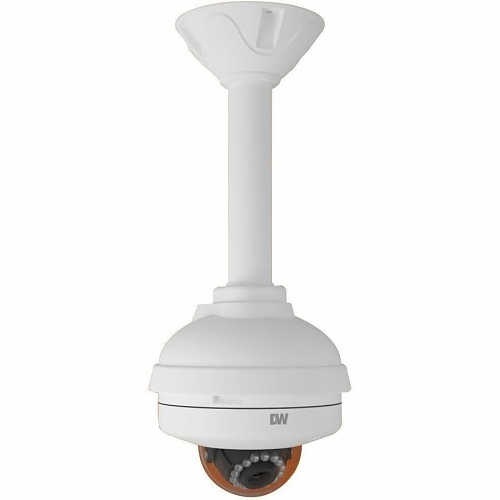

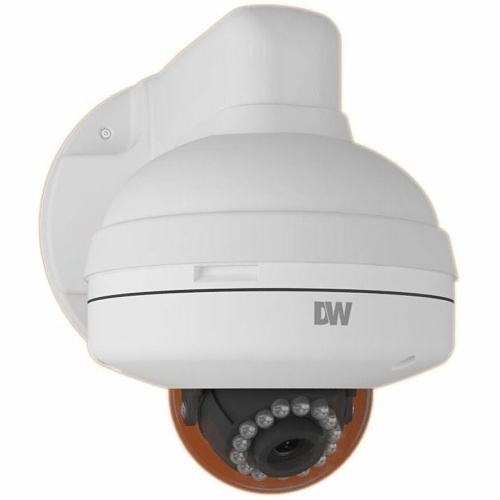

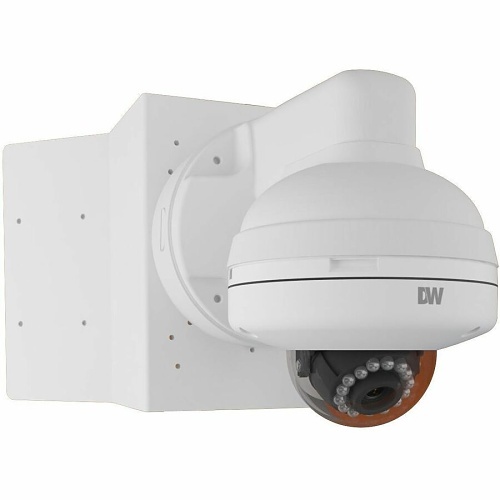

Diameter 4.9" Mount Type Ceiling Mount, Wall Mount
Recording Formats 2K
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Certifications CE, FCC, NDAA, UL Listing Environmental Certification RoHS Environmentally Friendly Yes Features 3D Digital Noise Reduction, Alarm Triggering, Auto Gain Control, Automatic White Balance, Built-in IR LED, Day/Night, Motion Detection, Multi-view Stream, Privacy Masking, Video Management System Impact Protection Rating IK10 Indoor/Outdoor Indoor, Outdoor Ingress Protection Rating IP66
