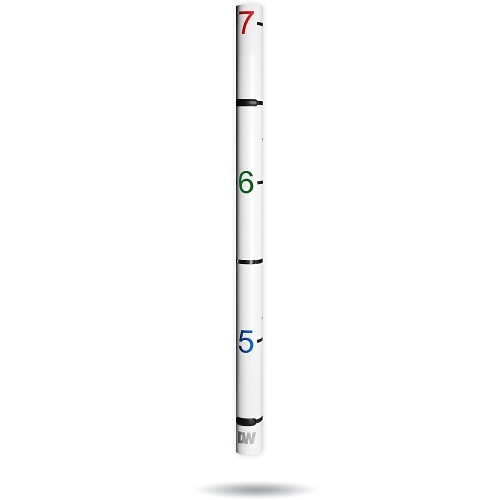

Digital Watchdog MEGApix 5MP Height Strip IP Camera, 3.7MM
Digital Watchdog MEGApix 5MP Height Strip IP Camera, 3.7MM
Digital Watchdog MEGApix 5MP Height Strip IP Camera, 3.7MM
DWC-MHS5W37T | 6K-MHS5W37T
Please sign in to view pricing and availability and to add to cart.
Product Overview
This MEGApix height strip IP camera is your gateway to powerful video analytics features and accurate identification. The camera is NDAA compliant and provides 5MP resolution at real-time 30fps in a discrete form factor, designed to capture a person’s face upon entering or leaving a facility. With a 3.7mm wide-angle lens, Star-Light Plus color in near-total darkness technology and wide dynamic range, the camera delivers high-definition facial image captures for accurate identification. The height strip IP camera is a cost-effective, reliable option for loss prevention, shrink, inventory control and crime reduction. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Main Features
- 5MP sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent video analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 3.7mm fixed lens
- Capture high-quality eye-level images of people entering and leaving a facility
- Height strip camera for eye-level surveillance with curved design for side visibility
- Highly visible color-coded height levels in feet
General Information
Specifications
ADI Part Number 6K-MHS5W37T Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-MHS5W37T Product Line MEGApix Product Model DWC-MHS5W37T Product Name Digital Watchdog DWC-MHS5W37T MEGApix 5MP Height Strip IP Camera with 3.7mm Lens Product Series MHS5 Product Type Surveillance Camera Supported Network Protocols IPv4 Weight 1.98lb
American Wire Gauge 18AWG Effective Camera Resolution 5MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Frame Rate 30fps Motion Detection Yes Night Vision Yes Night Vision Type Color, Infrared Output Voltage 12V DC Programmable Yes Protocols Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SMTP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, UPnP, Zeroconf (AutoIP) Video Formats H.264, MJPEG
Image Sensor Type CMOS Wide Dynamic Range Yes
Image Sensor Size 1/2.8" Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 122°F Minimum Operating Temperature -4°F Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -4-122°F
Longest Shutter Speed 1/32000 s Minimum Illumination 0.26 lux (color) Shortest Shutter Speed Off|x10|x15|x2|x3|x4|x5|x6|x7.5
Certifications CE, FCC, NDAA, ONVIF
Focal Length 3.7 mm Focus Modes Auto, Manual Lens Included Yes
Remote Management No
Color White Height 33.85" Material Aluminum
Frequency 50 Hz Input Voltage 12V DC
Diameter 0.78" Mount Type Wall Mount
Limited Warranty 5-Year
Country of Origin VN Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor
