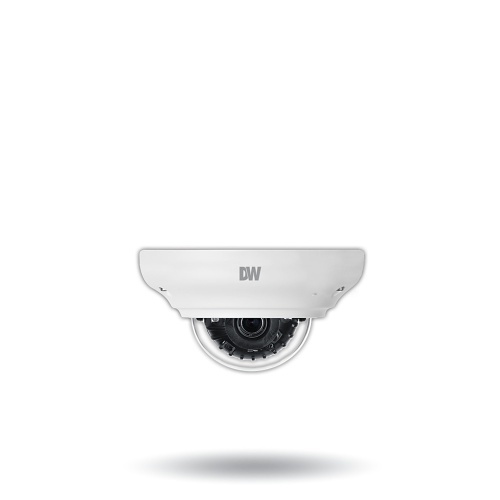

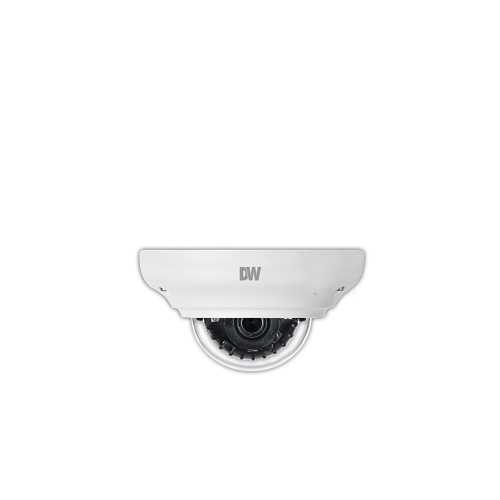

Digital Watchdog DWC-MPV72WI6TW MEGApix IVA 2.1MP Ultra Low-Profile Vandal Dome IP Camera, 6mm Fixed Lens, PoE Class 2, White
DWC-MPV72WI6TW|6K-MPV72WI6T
Digital Watchdog DWC-MPV72WI6TW MEGApix IVA 2.1MP Ultra Low-Profile Vandal Dome IP Camera, 6mm Fixed Lens, PoE Class 2, White
DWC-MPV72WI6TW|6K-MPV72WI6T
Digital Watchdog
Digital Watchdog DWC-MPV72WI6TW MEGApix IVA 2.1MP Ultra Low-Profile Vandal Dome IP Camera, 6mm Fixed Lens, PoE Class 2, White
DWC-MPV72WI6TW | 6K-MPV72WI6T
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
MEGApix IP camera provides 2.1MP/1080p resolution at real-time 30fps, includes 2.8, 4.0 and 6.0mm fixed lens options and simultaneous H.265/H.264/MJPEG codec support. The camera is powered by Star-Light Plus color in near-total darkness technology for quality video in any lighting conditions, all in an IP67-rated, IK-10 impact resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Main Features
- 2.1MP/1080P sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens (DWC-MPV72Wi28TW) 4.0mm fixed lens (DWC-MPV72Wi4TW) 6.0mm fixed lens (DWC-MPV72Wi6TW)
- Ultra low-profile vandal dome camera for discrete installation
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
General Information
Name: Digital Watchdog DWC-MPV72WI6TW MEGApix IVA 2.1MP Ultra Low-Profile Vandal Dome IP Camera, 6mm Fixed Lens, PoE Class 2, White
Category: Digital Watchdog, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 812226033201
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number 6K-MPV72WI6T Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-MPV72WI6TW Product Line MEGApix IVA+ Product Model DWC-MPV72WI6TW Product Name MEGApix IVA+ DWC-MPV72WI6TW Network Camera Product Type Network Camera
Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/2 Maximum Frame Rate 30 fps Night Vision Yes Night Vision Type Infrared Video Formats H.264, MJPEG
Connectivity Technology Wired Image Sensor Type CMOS Night Vision Distance 80' Wide Dynamic Range Yes
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 122°F Minimum Operating Temperature -4°F
Longest Shutter Speed 1/15 Second Minimum Illumination 0.05 lux (color) Shortest Shutter Speed Off|x10|x2|x3|x4|x5|x6|x7.5
Focal Length 6.0 mm Lens Included Yes
Remote Management Yes
Color White Durability Weather Resistant Form Factor Dome Material Aluminum Die-cast
Mount Type Bracket Mount, Ceiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount
Recording Formats Full HD Storage Type Memory Card
Analog Video Signal Format CVBS
Limited Warranty 5-Year
Country of Origin VN Environmental Certification RoHS Environmentally Friendly Yes Features 3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Cross Line Detection, Day/Night, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range Impact Protection Rating IK10
