Digital Watchdog DWC-PZ21M69TW MEGApix Pano 21MP Multi-Sensor Vandal IP Camera, x 8mm Lens, White
DWC-PZ21M69TW|6K-PZ21M69TW
Digital Watchdog DWC-PZ21M69TW MEGApix Pano 21MP Multi-Sensor Vandal IP Camera, x 8mm Lens, White
DWC-PZ21M69TW|6K-PZ21M69TW
Digital Watchdog
Digital Watchdog DWC-PZ21M69TW MEGApix Pano 21MP Multi-Sensor Vandal IP Camera, x 8mm Lens, White
DWC-PZ21M69TW | 6K-PZ21M69TW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

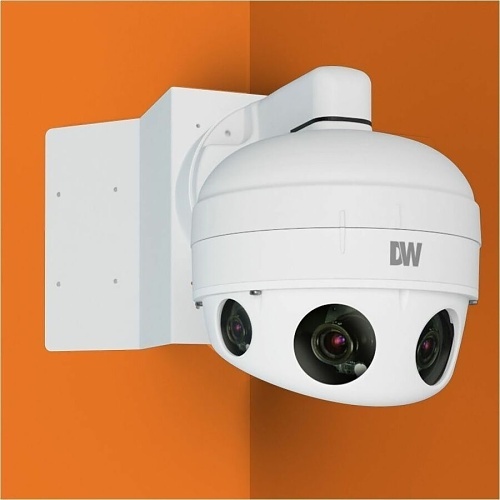

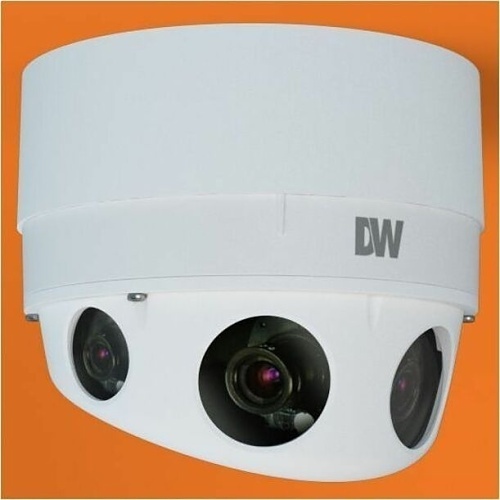

The MEGApix Pano 21MP multi-sensor IP vandal camera produces 180° views at real-time 30fps. The camera supports advanced features such as H.264 codec and Smart DNR in an aluminum vandal housing with zero distortion antireflective glass. The 21MP camera does the work of many cameras from one installation, delivering both unprecedented wide views and details.
Main Features
- 4x 6.4MP 1/1.8" image sensor at real-time 30fps
- 21MP 180A° panoramic view IP camera
- 4x 8.0mm fixed lens
- Fast frame rates: real-time 30fps at 21MP
- Zero distortion anti-reflective glass
- PoE injector included
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Two-way audio
- Smart DNR 3D digital noise reduction
- True day / night with mechanical IR cut filter
General Information
Name: Digital Watchdog DWC-PZ21M69TW MEGApix Pano 21MP Multi-Sensor Vandal IP Camera, x 8mm Lens, White
Category: Digital Watchdog, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code: 812226037421
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number 6K-PZ21M69TW Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-PZ21M69TW Product Line MEGApix Product Model DWC-PZ21M69TW Product Name MEGApix Pano 21MP multi-sensor vandal IP camera with fixed lenses Product Type Network Camera Supported Network Protocols IPv4 Weight 4.40lb
American Wire Gauge 18AWG Built-in Microphone Yes Effective Camera Resolution 21MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 8mm Motion Detection Yes Night Vision Yes Output Voltage 12V DC Programmable Yes Protocols 802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) Video Formats H.264, MJPEG
Connectivity Technology Wired Image Sensor Type CMOS Wide Dynamic Range Yes
Image Sensor Size 1/1.8" Maximum Video Resolution 3072 x 1728 Number of Sensors 4
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 0-80% RH (Non-condensing) Operating Temperature (T-T) -4-122°F
Longest Shutter Speed 1/15 Second Minimum Illumination 0.16 lux (color) Shortest Shutter Speed Off|x10|x2|x3|x5|x6|x7.5
Certifications CE, FCC, NDAA, UL Listing Network (RJ-45) Yes
Focal Length 8.0 mm Focus Modes Auto, Manual Lens Included Yes Maximum Focal Length 8 mm
Remote Management Yes
Color White Durability Dustproof, Tamper Resistant, Vandal Resistant, Waterproof, Weather Resistant Form Factor Panoramic Material Aluminum Die-cast
Input Voltage 12V DC
Storage Type Memory Card
Limited Warranty 5-Year
Country of Origin KR Environmental Certification RoHS Environmentally Friendly Yes Features 3D Digital Noise Reduction, Auto Flip, Back Light Compensation (BLC), Defog, Dual Stream, Gain Control, Highlight Compensation (HLC), Human Detection, Motion Detection, Vehicle Detection, White Balance
