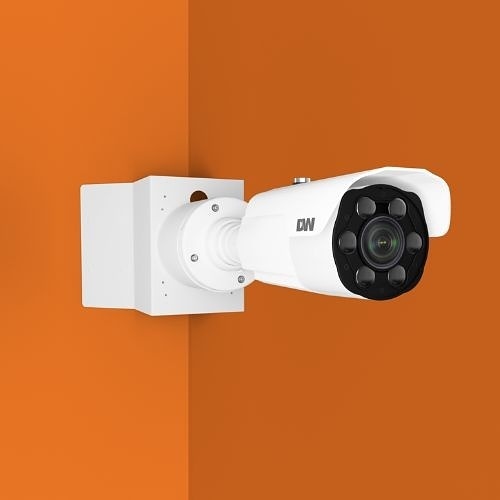

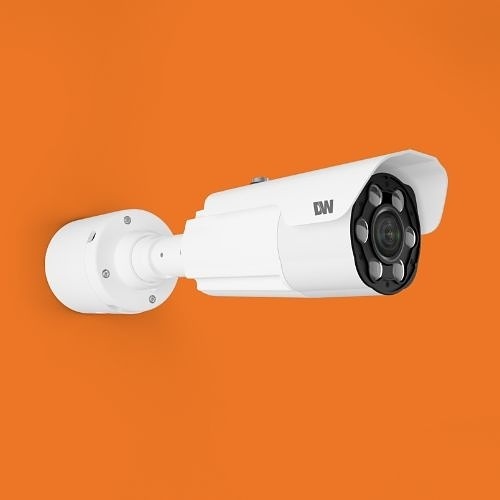

Digital Watchdog DWC-XSBA05MILC1 MEGApix Ai CaaS 5MP IR Bullet Edge IP Camera, ANPR, Varifocal Lens 6-50mm, White
DWC-XSBA05MILC1|6K-XSBA05MIL
Digital Watchdog DWC-XSBA05MILC1 MEGApix Ai CaaS 5MP IR Bullet Edge IP Camera, ANPR, Varifocal Lens 6-50mm, White
DWC-XSBA05MILC1|6K-XSBA05MIL
Digital Watchdog
Digital Watchdog DWC-XSBA05MILC1 MEGApix Ai CaaS 5MP IR Bullet Edge IP Camera, ANPR, Varifocal Lens 6-50mm, White
DWC-XSBA05MILC1 | 6K-XSBA05MIL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This MEGApix Ai IP camera uses the AI engine to detect and extract the numbers and letters in license plates at up to 75mph, converting the pixels to usable digital data. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Main Features
- 5MP sensor at real-time 30 fps
- Star-Light Plus color in near-total darkness technology
- Seamless integration and control with DW Spectrum
- Built-in 1TB storage options for up to 90 days of retained video
- Easily to deploy with pre-loaded DW Spectrum for out-of-the-box operation
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- ANPR optical character recognition captures and reads vehicle license plates at up to 75mph speeds
- Long-range vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
- True Wide Dynamic Range (WDR) for clear images in challenging light
General Information
Name: Digital Watchdog DWC-XSBA05MILC1 MEGApix Ai CaaS 5MP IR Bullet Edge IP Camera, ANPR, Varifocal Lens 6-50mm, White
Category: Digital Watchdog, Video Surveillance, IP Cameras, Bullet Cameras
UPC Code: 812226039876
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number 6K-XSBA05MIL Brand Name Digital Watchdog Manufacturer Part Number DWC-XSBA05MILC1 Product Line MEGApix Ai CaaS Supported Network Protocols IPv4 Weight 2.64 lb
American Wire Gauge 18AWG Built-in Microphone Yes Effective Camera Resolution 5MP Field of View Horizontal, Vertical Illumination Distance 130' Lens Type Varifocal, Zoom Maximum Frame Rate 30fps Motion Detection Yes Night Vision Yes Output Voltage 12V DC Programmable Yes Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) Video Formats H.264, H.265
Image Sensor Type CMOS Wide Dynamic Range Yes
Image Sensor Size 1/2.8" Maximum Video Resolution 2592 x 1944
Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -40-122°F
Minimum Illumination 0.0 lux (B/W)|0.10 lux (color) Shortest Shutter Speed Off|x10|x2|x3|x5|x6|x7.5
Certifications CE, FCC, NDAA, ONVIF, TAA, UL Listing
Focal Length 6-50 mm Focus Modes Auto, Manual
Durability Weather Resistant Form Factor Bullet Material Aluminum Die-cast
Frequency 50 Hz Input Voltage 12V DC
Limited Warranty 5-Year
Impact Protection Rating IK10
