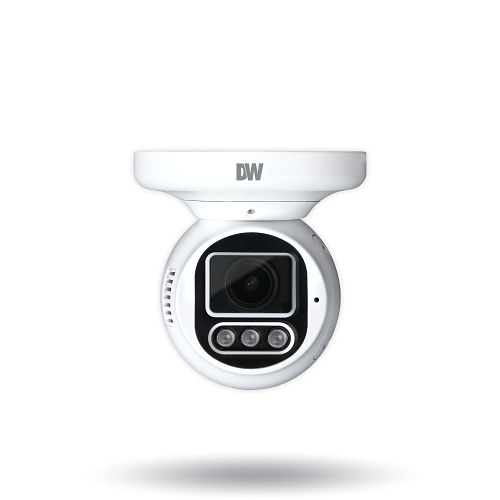

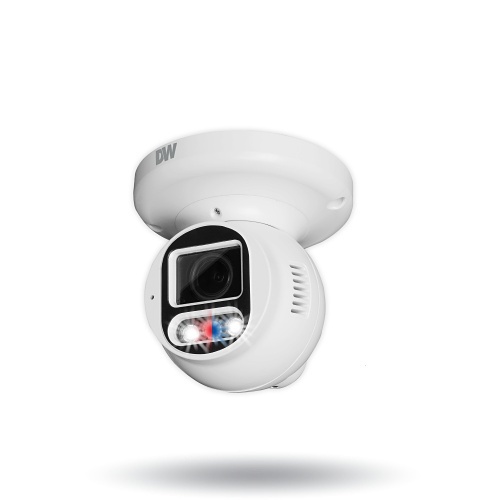

Digital Watchdog DWC-XSTD05MFC1 MEGApix 5MP Ai CaaS Vandal Ball Turret IP Camera with Vari-Focal Lens and White Light LEDs
DWC-XSTD05MFC1|6K-XSTD05MF1
Digital Watchdog DWC-XSTD05MFC1 MEGApix 5MP Ai CaaS Vandal Ball Turret IP Camera with Vari-Focal Lens and White Light LEDs
DWC-XSTD05MFC1|6K-XSTD05MF1
Digital Watchdog
Digital Watchdog DWC-XSTD05MFC1 MEGApix 5MP Ai CaaS Vandal Ball Turret IP Camera with Vari-Focal Lens and White Light LEDs
DWC-XSTD05MFC1 | 6K-XSTD05MF1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This NDAA/TAA-compliant MEGApix Ai CaaS all-in-one IP camera provides real-time 30 fps 5MP resolution with edge AI and DW Spectrum IPVMS server installed and licensed on the camera. No additional server hardware is required. The camera’s built-in microphone and speaker, white light and flash LEDs offer high-quality color images and deterrence.
Main Features
- 5MP sensor at real-time 30 fps
- Star-Light Plus color in near-total darkness technology
- AI Deep Learning object detection
- Create up to 40 separate detection zones
- Easy setup with no analytics calibration
- Seamless integration and control with DW Spectrum
- Reduce false alarms with multiple detection zones and logical rules
- Increase your recording storage with smart recording and no false alarms
- Built-in 1TB storage options for up to 90 days of retained video
- Easily to deploy with pre-loaded DW Spectrum IPVMS for out-of-the-box operation
General Information
Name: Digital Watchdog DWC-XSTD05MFC1 MEGApix 5MP Ai CaaS Vandal Ball Turret IP Camera with Vari-Focal Lens and White Light LEDs
Category: Digital Watchdog, Video Surveillance, IP Cameras, Turret Cameras
UPC Code: 812226039456
Country of Origin: KR. Country of origin is subject to change.
Specifications
ADI Part Number 6K-XSTD05MF1 Brand Name Digital Watchdog Manufacturer Part Number DWC-XSTD05MFC1 Product Line MEGApix Ai CaaS Product Name MEGApix Ai CaaS 5MP turret edge IP camera with vari-focal lens, flash LEDs and AI engine Product Type IP Camera Supported Network Protocols IPv4 Weight 1.94lb
American Wire Gauge 18AWG Built-in Microphone Yes Effective Camera Resolution 5MP Field of View Horizontal, Vertical Lens Type Varifocal, Zoom Material Aluminum Die-cast Maximum Aperture f/1.3 Maximum Frame Rate 30fps Minimum Focal Length 2.7mm Motion Detection Yes Night Vision Yes Night Vision Type Color Output Voltage 12V DC Programmable Yes Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) Video Formats H.264, H.265
Wide Dynamic Range Yes
Image Sensor Size 1/2.8" Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 122°F Minimum Operating Temperature -4°F Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -4-122°F
Longest Shutter Speed 1/15 Second Minimum Illumination 0 lux (white light)|0.07 lux (color) Shortest Shutter Speed Off|x10|x2|x3|x5|x6|x7.5
Focal Length 2.7-12 mm Focus Modes Auto, Manual Lens Included Yes
Color White Durability Weather Resistant Form Factor Turret Height 4.92" Width 4.79"
Frequency 50 Hz Input Voltage 12V DC
Limited Warranty 5-Year
Certifications CE, FCC, NDAA, ONVIF, TAA, UL Listing Impact Protection Rating IK10 Ingress Protection Rating IP67
