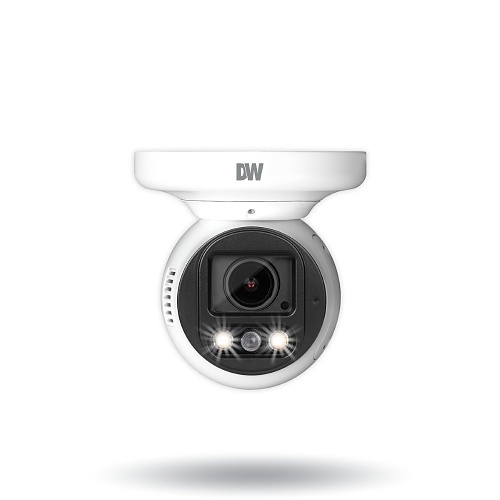

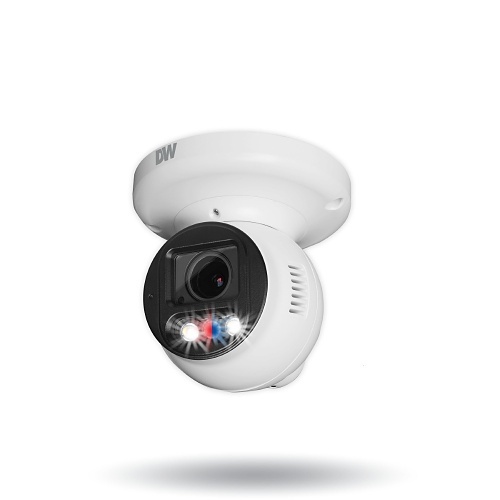

Digital Watchdog DWC-XSTD05MFQ MEGApix Ai 5MP Turret IP Camera with 2.7-2 mm Vari-Focal Lens, White Light LEDs, Flash Lights and QR Code Reader, White
DWC-XSTD05MFQ|6K-XSTD05MFQ
Digital Watchdog DWC-XSTD05MFQ MEGApix Ai 5MP Turret IP Camera with 2.7-2 mm Vari-Focal Lens, White Light LEDs, Flash Lights and QR Code Reader, White
DWC-XSTD05MFQ|6K-XSTD05MFQ
Digital Watchdog
Digital Watchdog DWC-XSTD05MFQ MEGApix Ai 5MP Turret IP Camera with 2.7-2 mm Vari-Focal Lens, White Light LEDs, Flash Lights and QR Code Reader, White
DWC-XSTD05MFQ | 6K-XSTD05MFQ
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This NDAA/TAA-compliant MEGApix AI 5MP turret IP camera comes with an AI plugin and QR code reader onboard, detecting and registering QR codes in the camera’s field of view. The camera features Star-Light Plus color in near-total darkness, is IP67- and IK10-rated and offers a 90' range white light, alarm flash and a built-in microphone and speaker for an all-in-one crime deterrence solution.
Main Features
- 5MP sensor at real-time 30 fps
- Star-Light Plus color in near-total darkness technology
- QR code reader detects and registers codes in the FoV with green LED visual verification
- AI Deep Learning object detection
- Create up to 40 separate detection zones
- Easy setup with no manual analytics calibration
- Seamless integration and control with DW Spectrum IPVMS
- Red/blue flash LEDs for an all-in-one crime deterrence solution
- Vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and a focused image any time
- True Wide Dynamic Range (WDR) for clear images in challenging light
General Information
Name: Digital Watchdog DWC-XSTD05MFQ MEGApix Ai 5MP Turret IP Camera with 2.7-2 mm Vari-Focal Lens, White Light LEDs, Flash Lights and QR Code Reader, White
Category: Digital Watchdog, Video Surveillance, IP Cameras, Turret Cameras
UPC Code: 00812226039999
Country of Origin: KR. Country of origin is subject to change.
Specifications
ADI Part Number 6K-XSTD05MFQ Brand Name Digital Watchdog Manufacturer Part Number DWC-XSTD05MFQ Product Line MEGApix Ai Product Name 16-Channel 4K Universal HD over Coax analog to IP signal encoder Product Type Signal Encoder Supported Network Protocols IPv4 Weight 1.94 lb
American Wire Gauge 18AWG Built-in Microphone Yes Effective Camera Resolution 5MP Field of View Horizontal, Vertical Lens Type Varifocal, Zoom Material Aluminum Die-cast, PC Maximum Frame Rate 30fps Motion Detection Yes Output Voltage 12V DC Power Consumption 30W Programmable Yes Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) Video Formats H.264, H.265
Minimum Illumination 0 lux (white light)|0.0 lux (B/W)|0.07 lux (color) Shortest Shutter Speed Off|x10|x2|x3|x5|x6|x7.5
Color Blue, Green, Red, White Depth 10.55" Durability Weather Resistant Form Factor Turret Height 1.77" Width 4.96"
Maximum Resolution 3840 x 2160
Limited Warranty 5-Year
