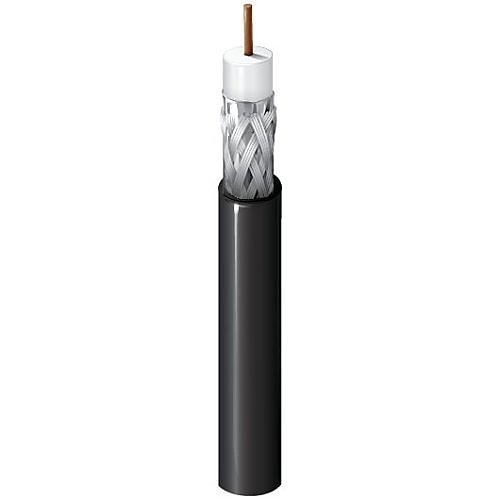

Belden 1506A 010500 RG-59 Coaxial Video Cable, 75 ohm SDI Coax,20AWG Solid Bare Copper Conductor, FEP Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMP, 500' (152.4m) Reel, Black
1506A 010500|7B-150650BLA
Belden 1506A 010500 RG-59 Coaxial Video Cable, 75 ohm SDI Coax,20AWG Solid Bare Copper Conductor, FEP Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMP, 500' (152.4m) Reel, Black
1506A 010500|7B-150650BLA
Belden
Belden 1506A 010500 RG-59 Coaxial Video Cable, 75 ohm SDI Coax,20AWG Solid Bare Copper Conductor, FEP Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMP, 500' (152.4m) Reel, Black
1506A 010500 | 7B-150650BLA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Belden 1506A 010500 RG-59 Coaxial Video Cable offers reliable 75 ohm impedance ideal for SDI video transmission. Constructed with a 20AWG solid bare copper conductor and FEP insulation, it ensures excellent signal quality. The cable features a robust foil and 95% tinned copper braid shield for superior protection against interference. It supports a nominal velocity of propagation of 84%, with a maximum pulling tension of 68 lbs for easy installation. The conductor DC resistance is 10 Ohms per 1000' at 20°C, and the outer shield has a resistance of 3.2 Ohms per 1000' at 20°C. This black cable comes in a 500' reel with a durable PVC jacket rated CMP. Upgrade your setup with this high-quality coaxial cable today!
Main Features
- 84% Nominal velocity of propagation
- 68 lbs Maximum reco mmended pulling tension
- 10 Ohms/1000' at 20°C Nominal conductor DC resistance (DCR)
- 3.2 Ohms/1000' at 20°C Nominal outer shield DC resistance (DCR)
General Information
Name: Belden 1506A 010500 RG-59 Coaxial Video Cable, 75 ohm SDI Coax,20AWG Solid Bare Copper Conductor, FEP Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMP, 500' (152.4m) Reel, Black
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code: 612825116660
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-150650BLA Brand Name Belden Manufacturer Part Number 1506A 010500 Product Type Video Cable
American Wire Gauge 20AWG Cable Rating Plenum Cable Type Coaxial Impedance 75 ohms Jacket Type CMP, Plenum Number of Conductors 1 Shielding Yes Solid or Stranded Solid
Cable Length 500' Color Black Insulation Material FFEP Jacket Material PVC Material PVC Package Type Reel
