Belden 3132AF2V1000 18 AWG Sol BCCS Foam FEP Insulation Cable DBSH SLF
3132AF2V1000|7B-3132F2V
Belden 3132AF2V1000 18 AWG Sol BCCS Foam FEP Insulation Cable DBSH SLF
3132AF2V1000|7B-3132F2V
Belden
Belden 3132AF2V1000 18 AWG Sol BCCS Foam FEP Insulation Cable DBSH SLF
3132AF2V1000 | 7B-3132F2V
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

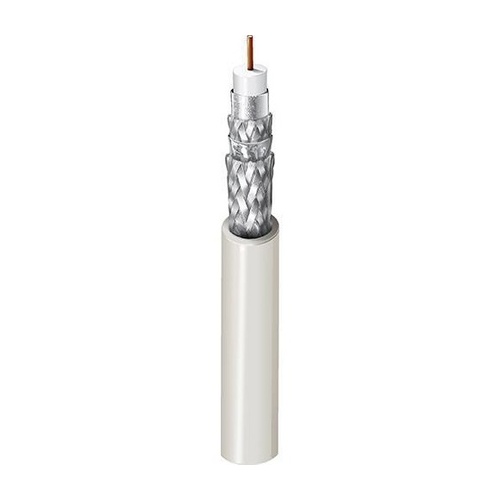

ControlBus, Coax RG6 18AWG (Solid) Bare Copper Covered Steel, FEP Insulation, Overall Duofoil+ Aluminum Braid(60%)+Overall Duofoil+Aluminum Braid(40%) Shield, PVDF Outer Jacket, CMP.
Main Features
- #18 AWG solid bare copper covered steel
- FEP insulation for durability
- Overall Duofoil and Aluminum Braid shielding
- PVDF outer jacket for protection
- CMP rated for safety
- Ideal for ControlBus and Coax RG6
General Information
Name: Belden 3132AF2V1000 18 AWG Sol BCCS Foam FEP Insulation Cable DBSH SLF
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-3132F2V Brand Name Belden Manufacturer Part Number 3132AF2V1000 Product Name ControlBus, Coax RG6, 18 Sol BCCS, FEP Ins, QUAD AL Shld, PVDF Jkt, CMP Product Type Connector Cable Weight 43lb
American Wire Gauge 18AWG Impedance 100 ohms Shielding Yes Solid or Stranded Solid
Application/Usage Controlnet, Factory Automation, Harsh Environment, Industrial Coax, Modbus Ii Cable Length 1000' Color Gray Material Bare Copper, Steel Package Type Bulk
Environmental Certification CE, China RoHS, RoHS 2, UL, WEEE Environmentally Friendly Yes
