D-Link DIS-100G-5PSW 5-Port Gigabit Unmanaged Industrial PoE Switch
DIS-100G-5PSW|8E-D100G5PSW
D-Link DIS-100G-5PSW 5-Port Gigabit Unmanaged Industrial PoE Switch
DIS-100G-5PSW|8E-D100G5PSW
D-Link
D-Link DIS-100G-5PSW 5-Port Gigabit Unmanaged Industrial PoE Switch
DIS-100G-5PSW | 8E-D100G5PSW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
D-Link DIS-100G-5PW Gigabit Unmanaged Switch 4 x 10/100/1000BASE-T PoE ports, 1x SFP ports are designed specifically to withstand wide temperature range, vibrations and shock. These rugged, yet easy to deploy, switches have superior environmental specification compared to those of commercial network switches. DIS-100G Unmanaged Switches provides 4 Gigabit Ethernet ports and 1 SFP port designed for supporting standard industrial applications without complex setup to make the network truly plug-and-play.
Main Features
- The DIS-100G-5PSW is compliant with both IEEE 802.3af and IEEE 802.3at PoE standards and delivering up to 30W power per port along with data on standard Ethernet cabling
- Fanless, passive cooling. Operating Temp -40 to 75 C
- Advanced Feature: Broadcast/Multicast/Unicast Storm Control, IEEE 802.1p Quality of Service (QoS) - 4 hardware queues per port

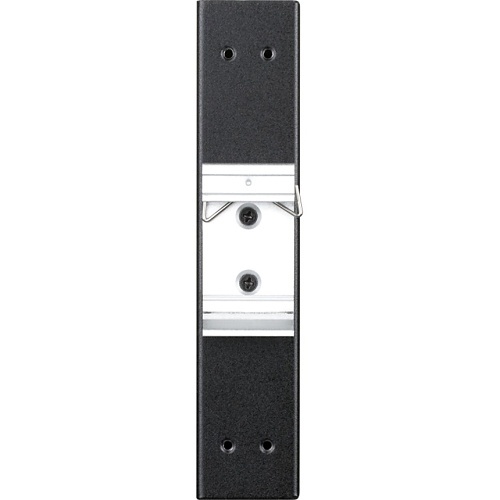

- DIN rail/wall-mountable
- IP30-rated metal casing
- Optical Fiber media support ensures maximum convenience and great usability
- Optical Fiber media support for a dependable and productive connectivity
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
General Information
Name: D-Link DIS-100G-5PSW 5-Port Gigabit Unmanaged Industrial PoE Switch
Category: D-Link, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 790069437885
Country of Origin: TW. Country of origin is subject to change.
Specifications
ADI Part Number 8E-D100G5PSW Brand Name D-Link Manufacturer D-Link Systems, Inc Manufacturer Part Number DIS-100G-5PSW NDAA Compliant Yes Packaged Quantity 1 Product Line Industrial Switch Product Model DIS-100G-5PSW Product Name Industrial Gigabit Unmanaged PoE Switch with SFP Slot Product Series DIS-100G Product Type Ethernet Switch Weight 13.23oz
Media Type Supported Optical Fiber, Twisted Pair
Expansion Slot Type SFP (mini-GBIC) Number of SFP Slots 1 Number of SFP+ Slots 1 Number of Total Expansion Slots 1 Shared SFP Slot No
Modular Yes Total Number of Network Ports 5 Uplink Port No
Manageable No
Network Technology 100/1000Base-T, 1000Base-X
Ethernet Technology Gigabit Ethernet Layer Supported 2
Depth 4.2" Form Factor DIN Rail, Wall Mount Height 1.1" Width 5.5"
Power Source Power Supply
Limited Warranty Lifetime
TAA Compliant Yes
