Planar PT3270Q 32" IPS LCD Touch Screen Monitor with Quad HD Resolution
998-2949-00|8Q-998294900
Planar PT3270Q 32" IPS LCD Touch Screen Monitor with Quad HD Resolution
998-2949-00|8Q-998294900
Planar
Planar PT3270Q 32" IPS LCD Touch Screen Monitor with Quad HD Resolution
998-2949-00 | 8Q-998294900
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

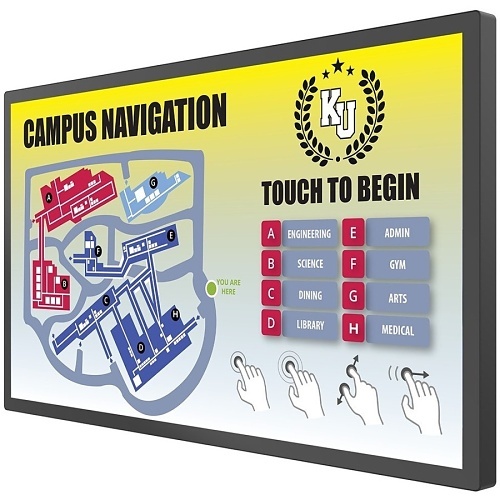

The Planar PT3270Q is a 32" interactive IPS LCD monitor with a 10-point touch screen and Quad HD resolution ideal for mounted applications. The big, bright, 10-bit panel provides 1.07 billion colors. The all glass front surface is anti-glare coated, reducing reflection, and is dust and water tight. It features a VESA 200 x 200 pattern for convenient mounting. A single USB-C cable delivers video, audio, and touch connectivity. The PT3270Q is perfect for retail and kiosk applications, enterprise IT, control rooms, and industrial environments.
Main Features
- 32" IPS LCD
- Projective Capacitive 10-point touchscreen
- Water & dust protection IP65 (front) with anti-glare coating
- USB Type-C, DisplayPort, HDMI inputs
- Various touch modes: glove, waterproof, behind cover glass

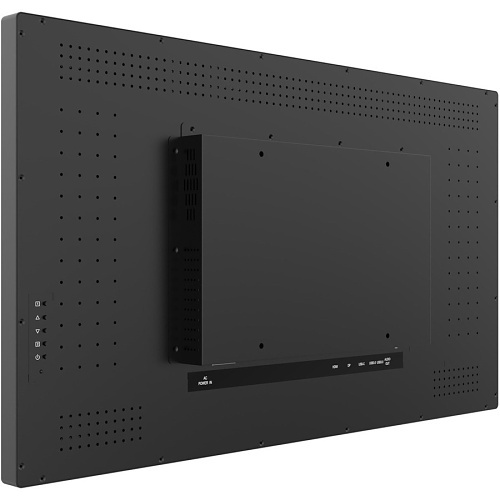

- VESA mount compatibility
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
General Information
Name: Planar PT3270Q 32" IPS LCD Touch Screen Monitor with Quad HD Resolution
Category: Planar, Pro AV, Commercial Displays, Pro Interactive Displays
UPC Code: 810689009979
Country of Origin: CN. Country of origin is subject to change.
Specifications
ADI Part Number 8Q-998294900 Brand Name Planar Manufacturer Leyard Manufacturer Part Number 998-2949-00 Product Line Planar Product Model PT3270Q Product Name PT3270Q 32" Touch Screen Monitor Product Series PT Product Type LCD Touchscreen Monitor Weight 28lb
HDCP Supported Yes Panel Technology IPS Response Time 14 ms GTG Viewable Screen Size 31.5"
Horizontal Viewing Angle 178°
Screen Size 32" Vertical Viewing Angle 178°
Operating Power Consumption 26W
Aspect Ratio 16:9
DisplayPort Yes HDMI Yes Number of USB Ports 1
Depth 2.4" Height 16.9" VESA Mount Compatible Yes VESA Mount Standard 200 x 200 Width 28.9"
Multi-touch Screen Yes Touchscreen Type Projected Capacitive
Brightness (Nit) 350 Contrast Ratio 1000:1 Maximum Resolution 2560 x 1440 Native Contrast Ratio 41.667361111111113
Limited Warranty 3-Year
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features Anti-glare, Anti-reflective Package Contents - PT3270Q 32" Touch Screen Monitor
- Power Cord
- USB Cable (C to C)
- HDMI Cable
- DP Cable
- USB Cable (A to C)
- User's Guide
