Marshall CV-0622-5MP Varifocal Lens for M12-Mount, 6mm to 22mm
CV-0622-5MP | 99-CV06225MP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

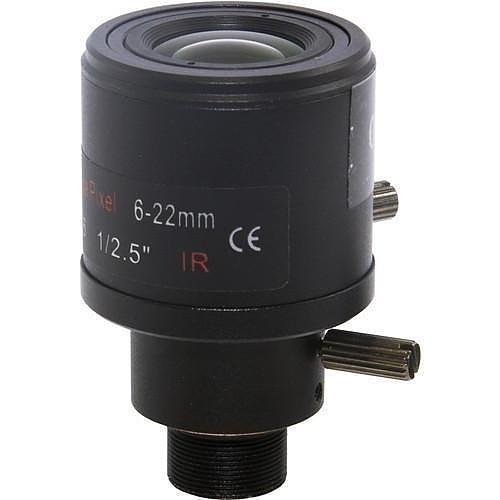

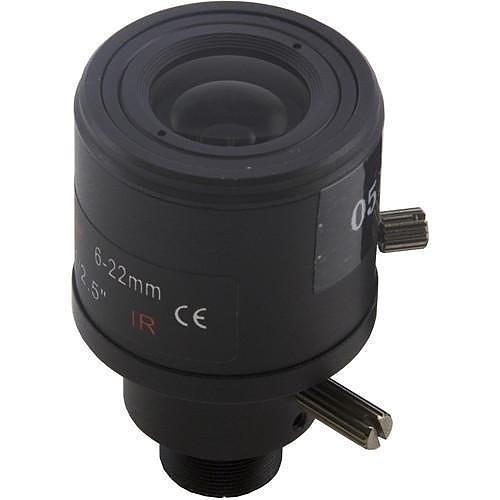

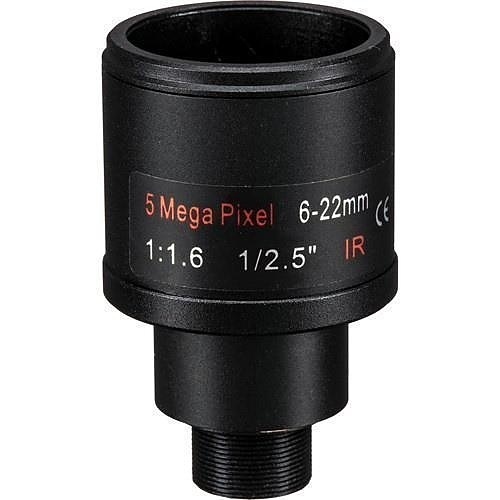

The M12-Mount 6-22mm IR Varifocal Lens from Marshall Electronics is designed for use with 5MP cameras that have a 1/2.5" sensor. This M12 mount lens features a 6-22mm focal length that delivers a 46.4-16.3° horizontal field of view. It offers fixed iris operation, along with manual focus and zoom operation with lock screws.
Main Features
- Compatible with 5MP Cameras
- Compatible with 1/2.5" Sensors
- 46.4-16.3° Horizontal Field of View
- Manual Focus and Zoom with Lock Screws
- 6-22mm Focal Length
- Fixed Iris Operation
- M12 Mount
General Information
Name: Marshall CV-0622-5MP Varifocal Lens for M12-Mount, 6mm to 22mm
Category: Marshall Electronics, Video Surveillance, Camera Lenses, Varifocal Lenses
UPC Code: 801813191738
Country of Origin: KR. Country of origin is subject to change.
Specifications
ADI Part Number 99-CV06225MP Brand Name Marshall Electronics Manufacturer Marshall Electronics, Inc Manufacturer Part Number CV-0622-5MP Product Model CV-0622-5MP Product Name 6-22mm F1.6 M12 Mount Varifocal Lens Product Type Lens
Field of View Horizontal: 46.4 to 16.3° Vertical: 34.8 to 12.2° Diagonal: 58 to 20.4° Iris Type Fixed Lens Mount Type M12 Lens Type Varifocal
Application/Usage Surveillance Camera
Sensor Size Compatibility 1/2.5"
