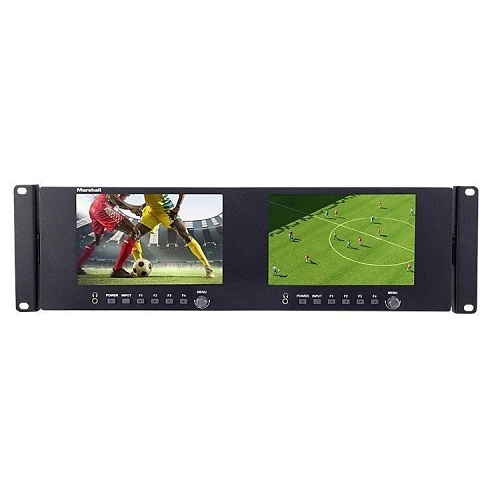

Marshall ML-702-V2 7" Rackmountable 3U Monitor with 3G-SDI, HDMI, and Composite
ML-702-V2|99-ML702V2
Marshall ML-702-V2 7" Rackmountable 3U Monitor with 3G-SDI, HDMI, and Composite
ML-702-V2|99-ML702V2
Marshall Electronics
Marshall ML-702-V2 7" Rackmountable 3U Monitor with 3G-SDI, HDMI, and Composite
ML-702-V2 | 99-ML702V2
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Dual Full HD Screens Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments. Great Off-Axis Performance Excellent angle of viewing allows the user to position the rack in any number of physical locations.
Main Features
- Dual 7" with 1920 x 1200 resolution, typical brightness 420 cd/m² and contrast 1200:1
- Each screen supports SDI, HDMI, CVBS (with analog audio) Inputs, all with looping outputs
- SDI supports up to 3G-Level A, HDMI supports up to 3840 x 2160p30 and 4096 x 2160p30
- Two bar audio overlay
- Tilting rack mount
- Compact size
- Dual power inputs
- Front panel control plus Ethernet control
- Bright displays with very good viewing angle
- Four User-defined function buttons
General Information
Name: Marshall ML-702-V2 7" Rackmountable 3U Monitor with 3G-SDI, HDMI, and Composite
Category: Marshall Electronics, Pro AV, Commercial Displays, Digital Signage
UPC Code: 801813234022
Country of Origin: CN. Country of origin is subject to change.
Specifications
ADI Part Number 99-ML702V2 Brand Name Marshall Electronics Manufacturer Part Number ML-702-V2 Product Name 7" Rackmountable 3RU monitor with Product Type Monitor Weight 5lb
Screen Size 7"
HDMI Yes
Depth 2.1" Height 5.26" Width 19"
