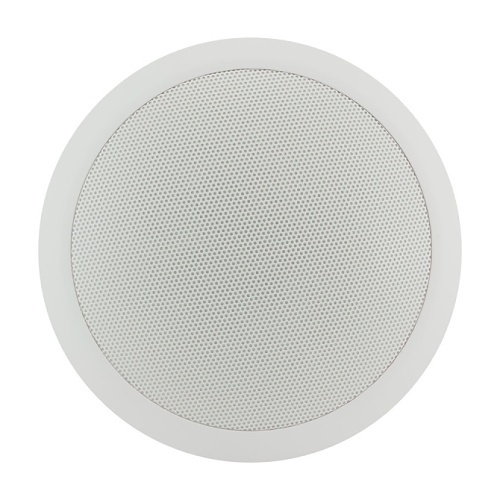

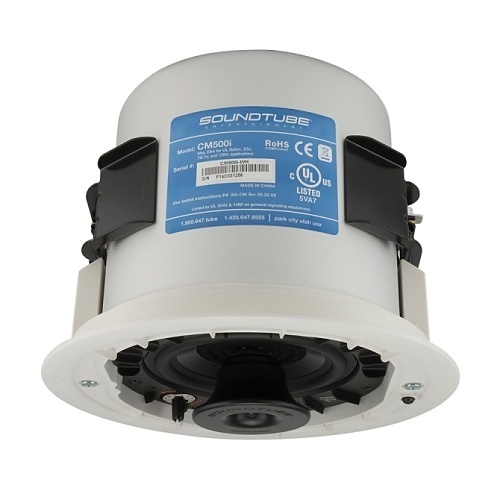

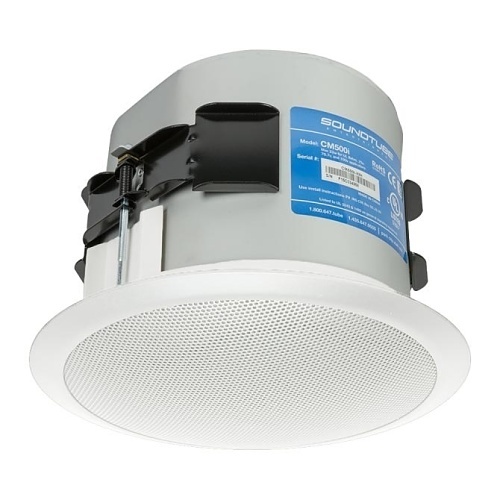

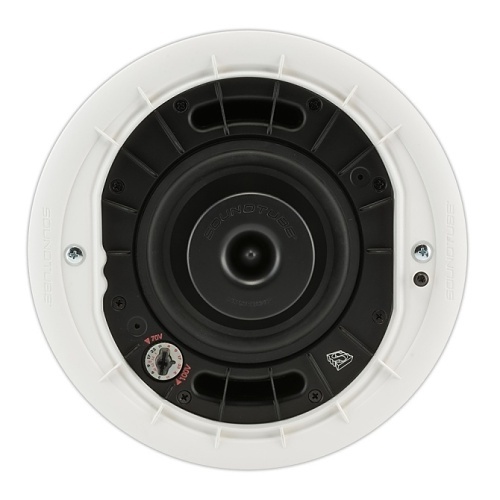

SoundTube CM500I 5.25" In-Ceiling Speaker with BroadBeam Tweeter, White
CM500I|9W-CM500I
SoundTube CM500I 5.25" In-Ceiling Speaker with BroadBeam Tweeter, White
CM500I|9W-CM500I
SoundTube
SoundTube CM500I 5.25" In-Ceiling Speaker with BroadBeam Tweeter, White
CM500I | 9W-CM500I
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
One 5.25" polypropylene woofer and one 1.0" convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. Rapid-installation, blind-mount, fixed wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.25" (6.4mm) to 1.91" (48.5mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 86.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.
Main Features
- Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2-10 kHz, independently verified)
- One 5.25" (133.75mm) polypropylene woofer and one 1" (25.4mm) convex titanium tweeter with FerroFluid cooling mounted to a proprietary castaluminum baffle and heat sink
- Rapid installation blind-mount, fixed-wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.25" (6.4mm) to 1.91" (48.5mm)
- Easy access six-position selectable tap switch for 25, 70.7, and 100V applications with transformer bypass position
- Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting
- Steel grille with protective powder-coated finish for lasting durability
- Average sensitivity of 86.5 dB offers high-output capabilities and reduced amplification costs
- UL1480A and UL2043 Approved
- High-quality black or white paint finish
- Included accessories; tile bridge, Euroblock connector, conduit plate, and paint mask
General Information
Name: SoundTube CM500I 5.25" In-Ceiling Speaker with BroadBeam Tweeter, White
Category: SoundTube, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 752830451483
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 9W-CM500I Brand Name SoundTube Manufacturer Part Number CM500I Product Name SoundTube 5.25" In Ceiling Speaker in White with a BroadBeam Tweeter Product Series i Product Type Speaker
Maximum Frequency Response 22 kHz Minimum Frequency Response 55 Hz RMS Output Power 75W
Color Black, White
