SoundTube IPD-CM52-BGM-II-WH 5.25" IP-Addressable, Dante-Enabled In-Ceiling Speaker with Short Can and Seamless Magnetic White Grille
SoundTube IPD-CM52-BGM-II-WH 5.25" IP-Addressable, Dante-Enabled In-Ceiling Speaker with Short Can and Seamless Magnetic White Grille
SoundTube IPD-CM52-BGM-II-WH 5.25" IP-Addressable, Dante-Enabled In-Ceiling Speaker with Short Can and Seamless Magnetic White Grille
IPD-CM52-BGM-II-WH | 9W-IPDCM52WH
Please sign in to view pricing and availability and to add to cart.
Product Overview

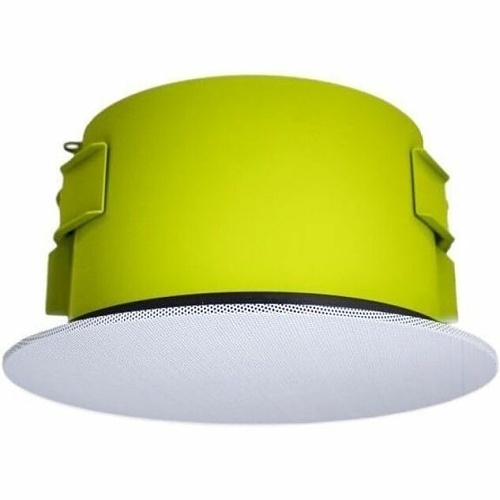

SoundTube IPD-CM52-BGM-II IP-Addressable Speaker in White
Dante®-enabled coaxial in-ceiling speaker incorporating one 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 65 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube®'s SpeedWing™constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 2.38 in (60.4mm). Color-coded tile bridge, UL listed conduit clamp and paint shield are included.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Main Features
- Significantly enhance the sound from your devices and drives, get i mmersed in sound quality
- Listen to deep lows and euphoric highs with a frequency range of sound from 56 Hz-22 kHz
- 5.25" woofer driver size allows better stereo imaging with maximum sound feasibility
- 0.75" tweeter driver size provides crispier, well-detailed sound with maximum productivity
- Delivers exceptional sound with 22 kHz maximum frequency response
- DANTE (Digital Audio Network Through Ethernet) feature for better reliance and usability
- Ethernet port for a reliable, convenient way of communication, playback, and connectivity
- Ceiling Mountable form factor for your convenience and simplicity of usage
- 0.3" height for efficient frequency access and optimal operation
- 11.8" diameter for reliable frequency and sound output
General Information
Specifications
ADI Part Number 9W-IPDCM52WH Brand Name SoundTube Manufacturer SoundTube Manufacturer Part Number IPDCM52BGMIIWH Product Model IPD-CM52-BGM-II Product Name IPD-CM52-BGM-II Speaker Product Series STNet IP-Addressable and Dante Series Product Type Speaker Weight 8lb
Material PP
Maximum Frequency Response 22 kHz Minimum Frequency Response 56Hz
Sound Emission 10 dB
Color White Form Factor Ceiling Mount, In-ceiling Mount Height 0.3" Size 5.25"
Power Source PoE, PoE+
Diameter 11.8" Mount Type Ceiling Mount, In-Ceiling Mount
Limited Warranty 5-Year
Environmental Certification RoHS Environmentally Friendly Yes Features DANTE (Digital Audio Network Through Ethernet) Package Contents - IPD-CM52-BGM-II Speaker
- Conduit Clamp
- Cover Plate
- Grille
- Paint Mask
TAA Compliant No
