Telguard TG-7FP Universal Sole Path 5G LTE-M Commercial Fire Cellular Alarm Communicator, Verizon
Telguard TG-7FP Universal Sole Path 5G LTE-M Commercial Fire Cellular Alarm Communicator, Verizon
Telguard TG-7FP Universal Sole Path 5G LTE-M Commercial Fire Cellular Alarm Communicator, Verizon
TG-7FPV | AD-TG7FPV
Please sign in to view pricing and availability and to add to cart.
Product Overview

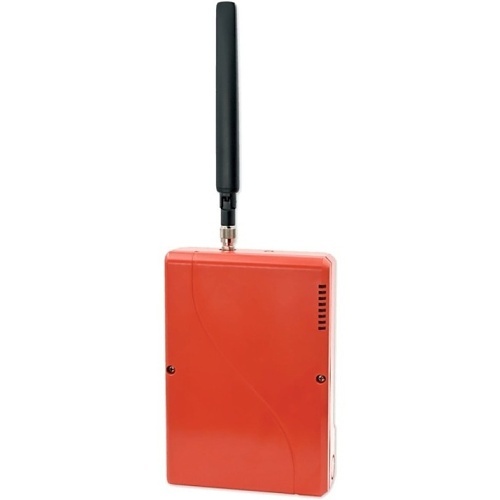

The Telguard TG-7FP Universal Sole Path 5G LTE-M Commercial Fire Cellular Alarm Communicator is specially designed for panel-powered, sole path, commercial fire applications. The TG-7FP (designed for Verizon) is all about saving time and money. It starts with a 5G LTE-M communicator with nationwide Verizon coverage that powers off the alarm panel, and costs less to purchase and install than comparable models. Add to that, the reliability of the Telguard products and the features needed to meet all AHJ and UL requirements and you have a fire communicator that will do the job at minimal cost.
Main Features
- Certified for use on the Verizon 5G LTE-M network for nationwide coverage in the US
- Powers directly from the fire panel’s 12V/24V auxiliary power source
- Operates on LTE-M networks, for lower power consumption and better building penetration
- Supports virtually all alarm formats using dial capture for universal panel compatibility: Contact ID, SIA, Radionics Modem formats, Pulse 4x2/3x1, DMP, Sonitrol
- Link Supervision available in 60- and 5-minut frequencies to meet any AHJ requirements for Sole Path connectivity
- UL 1610, UL 864
General Information
Specifications
ADI Part Number AD-TG7FPV Brand Name Telguard Manufacturer Telular Corporation Manufacturer Part Number TG7FPV Product Line Telguard Commercial Fire Product Model TG-7FP-V Product Name TG7FPV Universal Communicator Product Series TG-7 Fire Product Type Universal Alarm Communicator
Cellular Generation 5G LTE-M Connectivity Technology Wireless
Color Red Depth 2" Height 8.3" Width 5.8"
Input Voltage 12V DC, 24V DC
Additional Information Enclosure Compact-size red plastic enclosure 3 knockouts for 1/2" conduit connectors LEDs always visible on cover Built-in tamper switch External access to RSSI & Reset buttons Certifications & Standards California State Fire Marshal, S304 Commercial Burglary, S559 Commercial Fire Compatibility Compatible Formats CID SIA Pulse (4x2, 3x1) Radionics (IIe/3a2,4) DMP Package Contents TG7FPV Universal Communicator Terminal blocks LTE antenna
