AMX FG1058-580-FX Enova DGX DXLink Twisted Pair Cable Output Board for Enova DGX 8, 16, 32 and 64 Enclosures
AMX FG1058-580-FX Enova DGX DXLink Twisted Pair Cable Output Board for Enova DGX 8, 16, 32 and 64 Enclosures
AMX FG1058-580-FX Enova DGX DXLink Twisted Pair Cable Output Board for Enova DGX 8, 16, 32 and 64 Enclosures
FG1058-580-FX | AI-FG15858FX
Please sign in to view pricing and availability and to add to cart.
Product Overview

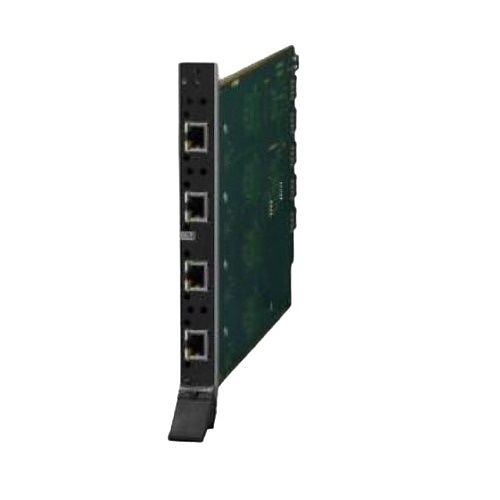

The DGX-O-DXL is a HDCP compliant twisted pair cable output board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures. It has four connections per DXLink Output Board and is designed to transmit audio and video to DXLink Twisted Pair Receivers while passing bi-directional control and Ethernet over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Output Board to power DXLink Twisted Pair Receivers.
Common Applications
The Enova DGX DXLink Twisted Pair Output Board is ideal for applications where destination devices are located up to 100 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.
Main Features
- Only One Cable - Send audio and video while passing control, Ethernet and power over one twisted pair cable
- Send HDMI signals up to 100 Meters - Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
- Standard Twisted Pair Cable - Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
- Hot Swappable - Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
- HDCP Compliant
General Information
Specifications
ADI Part Number AI-FG15858FX Brand Name AMX by Harman Manufacturer Harman International Industries, Inc Manufacturer Part Number FG1058-580-FX Product Line Enova Product Model DGX-O-DXL Product Name Enova DGX DXLink Twisted Pair Output Board Product Series DGX 100 Product Type DXLINK Twisted Pair Output Board
Application/Usage Commercial, Digital Media Switcher, Residential Color Black
Compatibility Enova DGX Digital Media Switchers:; DGX 8 DGX 16 DGX 32 DGX 64
