Product Overview

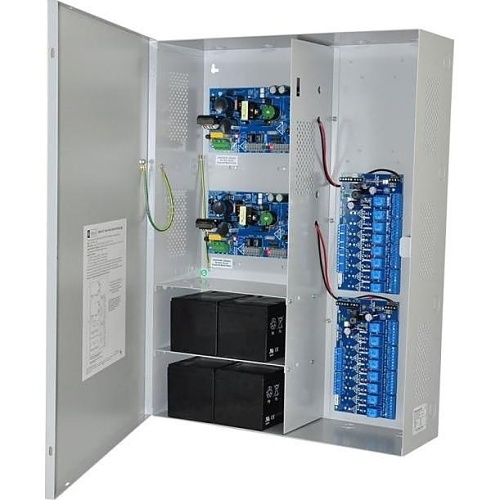

Introducing the Altronix MAXIMAL77FDV Access Power Controller, designed to efficiently distribute and manage power for your access control systems and accessories. This robust unit converts a 220VAC input into sixteen independently controlled 24VDC outputs, each protected by PTC. It seamlessly integrates with various access control devices such as Mag Locks and Electric Strikes, operating in both Fail-Safe and Fail-Secure modes. The FACP Interface allows for emergency egress and alarm monitoring, ensuring safety and reliability. With selectable fire alarm disconnect features, this controller is essential for any security setup. Upgrade your access control system today with the Altronix MAXIMAL77FDV!
Main Features
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
- Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input, b) Polarity reversal input from FACP signaling circuit
- Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC)
General Information
Name: Altronix MAXIMAL77FDV Access Power Controller with Eflow104nb and 2-Acm8cb, 220V
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AX-MAXIMAFDV Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXIMAL77FDV Product Line Maximal Product Model MAXIMAL77FDV Product Name Access Power Controller w/ Power Supply/Chargers, 16 PTC Class 2 Relay Outputs, Dual 24VDC P/S @ 9.7A each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure Product Series Maximal Product Type Access Power Controller Power Supplies Sector Access Control Weight 33.9lb
Number of Doors 16 Output Voltage 24V DC
NDAA Compliant Yes
Depth 6.25" Height 26" Width 19"
Input Voltage 220V AC
Limited Warranty Lifetime
Indoor/Outdoor Indoor Package Contents 1 x BC800 Enclosure, 26"H x 19"W x 6.25"D, Grey, 19 Gauge, Indoor, 2 x ACM8CB Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board, 2 x eFlow104NBV Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, Board
