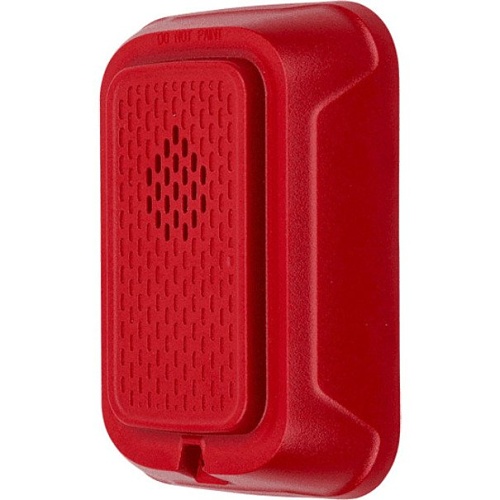

System Sensor CHRL L-Series Selectable Output Chime,Wall Mount, Red
System Sensor CHRL L-Series Selectable Output Chime,Wall Mount, Red
System Sensor CHRL L-Series Selectable Output Chime,Wall Mount, Red
CHRL | BK-CHRL
Please sign in to view pricing and availability and to add to cart.
Product Overview
L-Series chimes were designed to produce a distinctive chime tone to meet UL 464 private mode applications for alerting trained personnel to investigate possible emergency situations and take appropriate actions. Devices feature rotary switches to select from a multitude of sound patterns and volume settings, and are compatible with 12- or 24-volt systems for additional customization. Using the shorting spring feature to provide instant feedback to ensure that wiring is properly connected – in conjunction with our plug-in design – simplifies the process and cuts install time. Chimes are also compatible with the System Sensor synchronization protocol
Main Features
- Updated modern aesthetics
- Plug-in design with minimal intrusion into the back box
- Mounting plate shorting spring feature checksWiring continuity before device installation
- Captive mounting screw
- Tamper-resistant construction
- Automatic selection of 12- or 24-volt operation at 15 and 30 candela
- Rotary switch for tone and volume selections
- Five selectable tones with high and low volume settings
- Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices
- Wall models listed for wall mounting only, ceiling models listed for ceiling mounting only
General Information
Specifications
ADI Part Number BK-CHRL Brand Name System Sensor Manufacturer Honeywell International, Inc Manufacturer Part Number CHRL Product Name L CHRL Security Alarm Product Series L Product Type Chime
Alarm Type Audible
Application/Usage Indoor Color Red Form Factor Wall Mount
Input Voltage 24V DC Power Source DC
Mount Type Wall Mount
