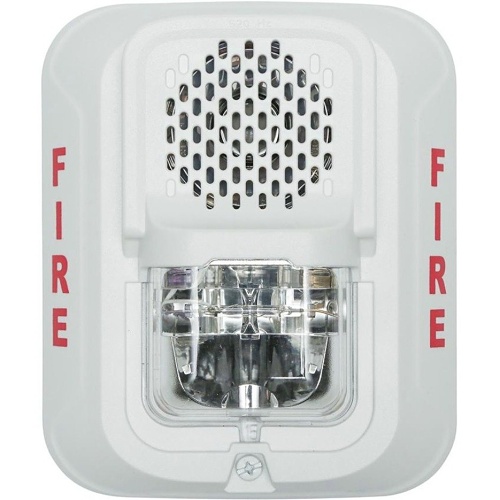

System Sensor P2WL-LF L-Series Indoor Selectable Output Low Frequency Sounder Strobe, 2-Wire, Wall Mount, "FIRE" Marking, White
P2WL-LF|BK-P2WLLF
System Sensor P2WL-LF L-Series Indoor Selectable Output Low Frequency Sounder Strobe, 2-Wire, Wall Mount, "FIRE" Marking, White
P2WL-LF|BK-P2WLLF
System Sensor
System Sensor P2WL-LF L-Series Indoor Selectable Output Low Frequency Sounder Strobe, 2-Wire, Wall Mount, "FIRE" Marking, White
P2WL-LF | BK-P2WLLF
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
System Sensor L-Series audible visible notification products are rich with features guaranteed to maximize profits with lower current draw and modern aesthetics.
The L-Series offers the most versatile and easy-to-use line of low frequency sounder and low frequency sounder strobes in the industry. With white and red plastic housings, listed for wall and ceiling mounting, L-Series Low Frequency can meet virtually any application requirement.
Main Features
- 520 Hz ± 10% square wave tone, NFPA compliance
- Full candela range plus High/Low tone options to optimize current draw for a wide variety of applications
- Field-selectable candela settings: 15, 30, 75, 95, 110, 135, and 185
- Field-selectable candela settings. Wall units: 15, 30, 75, 95, 110, 135, and 185. Ceiling units: 15, 30, 75, 95, 115, 150, and 177
- Rotary switch for High/Low, Temp3, Temp4, and Continuous settings. Sounder-only models also offer a Coded setting.
- Plug-in design with minimal intrusion into the back box
- Mounting plate shorting spring checks wiring continuity before device installation
- Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices (Direct replacement for HW/R-LF and P2R/WH-LF)
- Compatible with MDL3 sync module
- Sounders listed for ceiling and wall
General Information
Name: System Sensor P2WL-LF L-Series Indoor Selectable Output Low Frequency Sounder Strobe, 2-Wire, Wall Mount, "FIRE" Marking, White
Category: System Sensor, Fire, Fire Notification Appliances, Sounder Strobes, ADI Pro Rewards
UPC Code: 783863054686
Country of Origin: MX. Country of origin is subject to change.
Specifications
ADI Part Number BK-P2WLLF Brand Name System Sensor Manufacturer Honeywell International, Inc Manufacturer Part Number P2WL-LF Product Model P2WL-LF Product Name P2WL-LF Horn/Strobe Product Series L Product Type Sounder Strobe
Alarm Type Audible, Visual Connectivity Technology Wired
Application/Usage Nursing Home, Signaling System Color White Depth 5.6" Form Factor Wall Mount Height 1.9" Lens Color Clear Width 4.7"
Input Voltage 24V DC Power Source DC
Mount Type Wall Mount Print/Message Fire
Indoor/Outdoor Indoor
