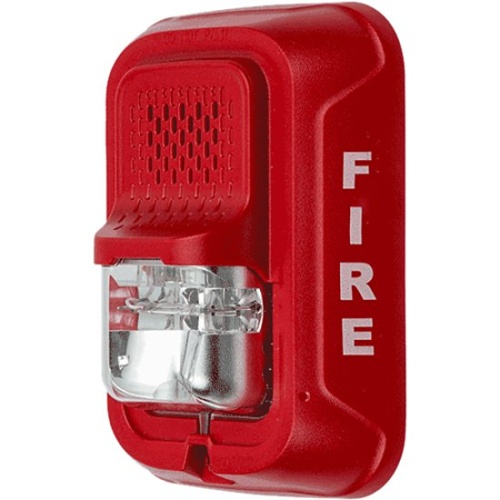

System Sensor P4RL L-Series Indoor Selectable Output Horn Strobe, 4-Wire, Wall Mount, "FIRE" Marking, Red

System Sensor P4RL L-Series Indoor Selectable Output Horn Strobe, 4-Wire, Wall Mount, "FIRE" Marking, Red

System Sensor P4RL L-Series Indoor Selectable Output Horn Strobe, 4-Wire, Wall Mount, "FIRE" Marking, Red
P4RL | BK-P4RL
Please sign in to view pricing and availability and to add to cart.
Product Overview
The System Sensor L-Series offers the most versatile and easy-to-use line of horns, strobes, and horn strobes in the industry with lower current draws and modern aesthetics. With white and red plastic housings, standard and compact devices, and plain, FIRE, and FUEGO-printed devices, System Sensor L-Series can meet virtually any application requirement.
The L-Series line of wall-mount horns, strobes, and horn strobes include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.
To further simplify installation and protect devices from construction damage, the L-Series utilizes a universal mounting plate for all models with an onboard shorting spring, so installers can test wiring continuity before the device is installed.
Installers can also easily adapt devices to a suit a wide range of application requirements using field-selectable candela settings, automatic selection of 12- or 24-volt operation, and a rotary switch for horn tones with two volume selections.
Main Features
- Updated Modern Aesthetics
- Small profile devices for Horns and Horn Strobes
- Plug-in design with minimal intrusion into the back box
- Tamper-resistant construction
- Automatic selection of 12- or 24-volt operation at 15 and 30 candela
- Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185
- Horn rated at 88+ dBA at 16 volts
- Rotary switch for horn tone and two volume selections
- Mounting plate for all standard and all compact wall units
- Mounting plate shorting spring checks wiring continuity before device installation
General Information
Specifications
ADI Part Number BK-P4RL Brand Name System Sensor Manufacturer Honeywell International, Inc Manufacturer Part Number P4RL Product Model P4RL Product Name 4-Wire, Horn Strobe, Red Product Series L Product Type Horn Strobe
Alarm Type Audible, Visual Connectivity Technology Wired
Sound Emission 88 dB
Application/Usage Fire Alarm, Indoor Color Red Depth 2.5" Durability Tamper Resistant Form Factor Wall Mount Lens Color Clear Width 4.7"
Input Voltage 33V DC Power Source DC
Mount Type Wall Mount
Compatibility System Sensor MDL3 Sync Module Compatible Devices: Legacy SpectrAlert SpectrAlert Advance Indoor/Outdoor Indoor
