Bogen OCS1 Orbit Ceiling Speaker, Off White
OCS1|BO-OCS1
Bogen OCS1 Orbit Ceiling Speaker, Off White
OCS1|BO-OCS1
Bogen
Bogen OCS1 Orbit Ceiling Speaker, Off White
OCS1 | BO-OCS1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

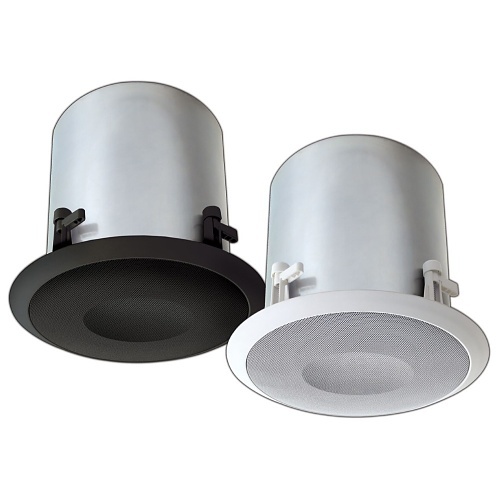

The Orbit Ceiling speakers are the ideal choice for various types of ceiling environments. The OCS1 features MLS and MDT technologies, which improve sound quality and increase operating reliability. The low-distortion speaker design, featuring a spider-less driver and one-piece metal-alloy cone structure, delivers superb articulation and the highest intelligibility for both music and speech. The speaker can be easily installed on hard surfaced ceilings, or in suspended ceilings and new construction (with the optional TBCR bracket).
Main Features
- 140-degree wide-dispersion coaxial driver for broad even coverage
- Stable, high definition metal-alloy woofer cone
- 6-1/2" MDT metal-alloy cone delivers detailed sound; 3/4" polycarbonate tweeter
- High-efficiency drivers deliver superior performance
- Computer-matched venting system and large back can provide exceptional full bass output
- For 16-ohm, 70V, & 100V systems
- Complies with UL-2043
General Information
Name: Bogen OCS1 Orbit Ceiling Speaker, Off White
Category: Bogen, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 765368100389
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number BO-OCS1 Brand Name Bogen Manufacturer Bogen Communications International, Inc Manufacturer Part Number OCS1 Product Model OCS1 Product Name Orbit OCS1 Ceiling Speaker Product Series OCS1 Product Type Speaker Weight 10lb
Crossover Type 2-way Impedance 16 ohms Sensitivity 89.5dB Speaker Size 6.5"
Maximum Frequency Response 19 kHz Minimum Frequency Response 45Hz
Color White Depth 12" Durability Corrosion Resistant, Rigidity Resistant Form Factor Ceiling Mount Height 12.4" Material Cone Size 6.5" Width 12.4"
Limited Warranty 2-Year
Country of Origin CN Features Attractive, Computer-matched venting system, Contemporary, Extremely good off-axis response, High definition metal-alloy cone, High power handling capability, High-efficiency, Low-resonance cabinet structure, Stable, Sturdy steel grille, Wide-dispersion Indoor/Outdoor Indoor Package Contents - Orbit OCS1 Ceiling Speaker
- Input Terminal Covers (2 halves)
- 4 x Screws
- 1 x Snap Lock Input Connector
